Equipped with a variety of applications aimed at high precision, high productivity, and reduced gear noise

The adoption of a newly developed structure has achieved a reduction in non-processing time compared to our previous models.
It meets the increasing needs for mass production of high-precision gears, including V and robots.
In addition, a variety of applications are available to reduce gear noise, such as bias correction functions and polish grinding.
At JIMTOF2024, we will exhibit an actual automated line including conveying and measuring devices.

The world's first generating-type internal gear grinding achieves both high precision and high productivity

This internal gear grinding machine produces highly accurate internal gears for planetary gear mechanisms used in automobile drive units and transmissions, and robot joints.
As electrification and automation progress, we are able to meet the ever-increasing need for high-precision gears.
Please also take a look at our latest technologies, such as the "internal gear polishing method for mass production," which is the result of joint research with Germany's Aachen University of Technology.

A flexible machine that can handle everything from spur gears to helical gears to crowned gears.

An NC helical guideless gear shaper that pursues high-added-value gear machining.
No guide replacement is required, and gears with any helix angle can be machined using an NC program.
In addition, by making the relieving operation NC, arc crowning and taper machining can be achieved through program operation.
This flexible machine is ideal for small-lot, high-mix production, two-stage gears, etc.

A full lineup with new carbide series and new coating

Precision cutting tools boast a global supply system with four bases around the world.
We will exhibit and demonstrate new materials and coatings with excellent long life and wear resistance.
We will also be showcasing for the first time the repair and refurbishment technology for cutting tools using a metal 3D printer.

Fusion of 5-axis control machining center and gear processing technology

Turning, drilling, thread cutting and gear processing (hobbing, skiving) can all be achieved with this one machine.

Highly efficient multitasking center that realizes high added value and high productivity

TAKISAWA's flagship model, TMX-4000IIST is a multi-task machine with a powerful tool spindle and highly accurate opposed twin spindle.
The tool spindle is equipped with a high-torque built-in motor.
It can flexibly handle everything from powerful milling operation to delicate machining.
It also has a full range of functions to make the increasingly complex operation of multi-task machines simple and easy to understand.
The operation panel has a multi-monitor specification, improving operability.
The sub-monitor can display not only operation buttons, but also M-codes and manuals to support your operation.

High rigidity and high precision Combined Machining CNC Lathe

Newly revealed Combined Machining CNC Lathe with opposed twin spindle and single turret with Y-axis.
It also supports process integration including hobbing.

Combined Machining CNC Lathe with up/down Y-axis turrets that offers a wide range of automation solutions

Combined Machining CNC Lathe equipped with upper and lower Y-axes specialized for bar material machining.
It can handle bars up to φ65mm, and realizes complete front and back machining with two upper and lower tool rests and two left and right spindles.
The Y-axis with sufficient stroke is mounted on the upper and lower Turret. It supports in-machine automation of workpiece discharge, and automatic discharge is possible without worrying about floor space. It is a compact and highly productive product.

Large vertical CNC lathe

The new VTL series, large-sized vertical CNC lathehas been added to our product lineup.
The main spindle uses a double-row cylindrical roller bearing and a thrust angular ball bearing, achieving high rigidity and high precision.

Easy automation for everyone. Hand-push cart type robot system

Do you have any of these concerns?
- The production volume of mass-produced work suddenly increased, but we cannot invest new equipment or increase working hours.
- Considering automation for high-mix, small-lot production, but the budget is not suitable for mass-production equipment such as gantry loaders.
- The introduction of robot systems and their in-house training is difficult.

The TR-Series solves such concerns.
One unit can be moved to multiple machine island by hand, allowing for flexible operation.
It takes as little as five minutes from installation to startup.
The overwhelming time savings reduce the burden on workers. Equipped with a ""teaching-less system,"" anyone can easily operate it."

Compact 5 axis machining center that achieves high speed machining, floor space saving and good workability.

The VB-X650 is a small 5 axis machining center that achieves high-speed machining, floor space saving, and good workability.
It uses a direct drive motor for the rotary axis, enabling high-speed machining without backlash.
We will unveil the newly developed functions at JIMTOF2024.

Expanded lineup of 5 axis horizontal machining centers to meet process integration needs

Top-class space-saving Despite being 5-axis machining, it has the same floor space and height as a 4-axis machining.
Great workpiece loading with unique APC design. Easy-to-access setup station.
Increased rapid feed rate and table rotation speed,　reducing cycle time with concentration of knowledge of existing NIDEC OKK machines.

Achieves the fastest speed in its class! Rapid forward speed 63m/min, maximum forward acceleration 1G

The HMC500 achieves high speed and efficient machining with the fastest level in its class, rapid traverse speed of 63m/min and maximum feed acceleration of 1G.
This horizontal machining center meets the needs of mass production parts machining for automobiles and general industrial machinery.
We will demonstrate the automatic rotation function of the pallet setup section.

The future of production with digital twin for greater efficiency and labor savings

MVR-Hx is a high-end model with high precision, high rigidity and a wide range of options.

At the JIMTOF venue, we will introduce the use of digital twin technology.
Simulations that reproduce the real world with high precision will maximize the perfection of programs, and machines that can faithfully reproduce data will quickly realize production of the targeted quality.
・Check machine operation interference and cutting load
・Check work cycle time and estimate machining surface
・After confirmation, tune parameters
These processes are completed in virtual space, proposing efficient and labor-saving factory operations of the future.

Of course, we will also conduct a powerful heavy machining demonstration.
Please come and see both the sophisticated technology and power.

A precision position detector that is maintenance-free and has excellent environmental resistance

Precision position detector ideal for detecting linear and rotational positions in a wide range of industrial machines.
Coolant, grease, mist, condensation, dust, dirt...don't let these things stop you!
The MP Scale with outstanding environmental resistance has evolved!
At JIMTOF2024, we will be unveiling new linear scale and rotary scale products with improved usability and functionality for the first time."

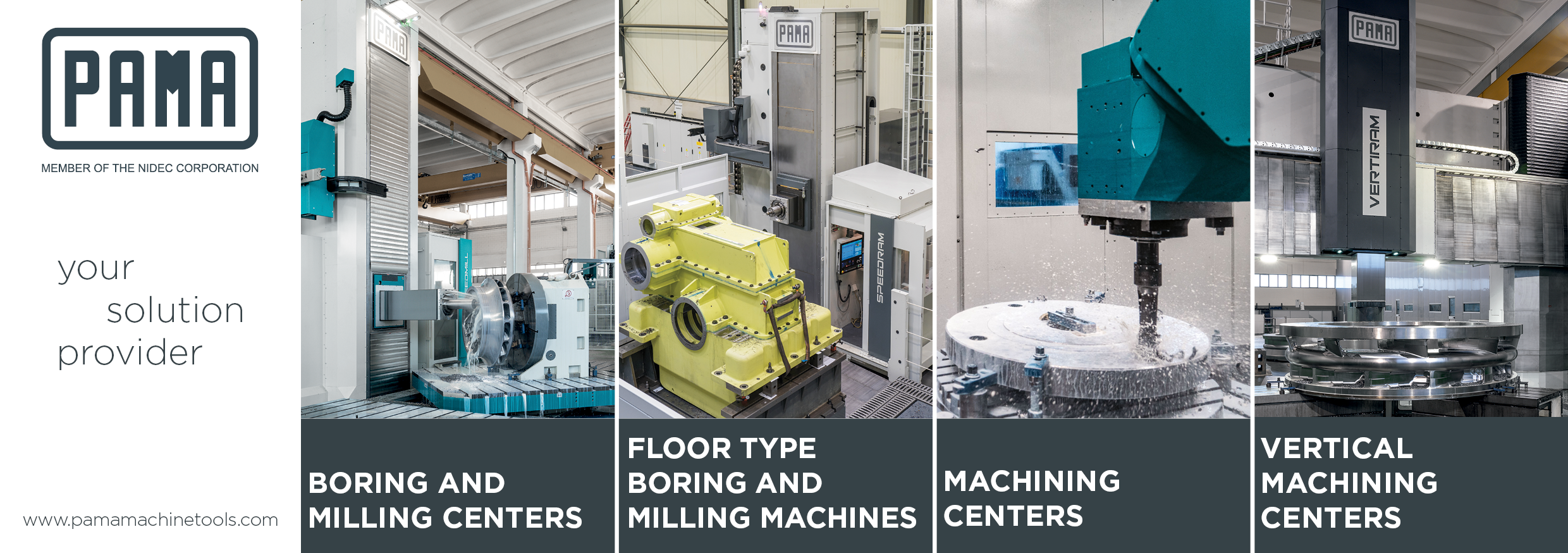

A wealth of experience in the production of boring and milling machines and large machining centers

PAMA, which has a wealth of experience and enviable know-how in the production of boring and milling machines and large machining centers, joined the NIDEC Group in 2023.
You can watch the video at JIMTOF.

Innovation in manufacturing processes and the realization of high-added-value parts

This is a powder DED type metal 3D printer that excels at printing large parts and dissimilar materials.

- The improved local shield nozzle significantly improves shielding performance
- The monitoring system optimizes printing conditions in-process

At the exhibition booth, you can see our unique core printing technology that enables high-quality printing, as well as various printing samples.
