Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G10I-AZ
companies handling the product：Nidec Corporation
High Output, Long Life, High Efficiency
Use of high output motor and optimized wind tunnel brings about high cooling perfomance. Enhancement of air pressure enables its application for furthering the distance the wind travels. Last but not the least, ball bearing makes the fan motor a long-life one.
- characteristics:
- Sirocco Fan Motor whose air inletting direction is vertical to its outletting direction.
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W97.2×H43.2 mm |
| Size | W3.837×H1.70 inch |
| Length | 94.1 mm |
| Length | 3.7 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30,000H（40℃） |
| Mass | 200 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | |
| Rated input |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

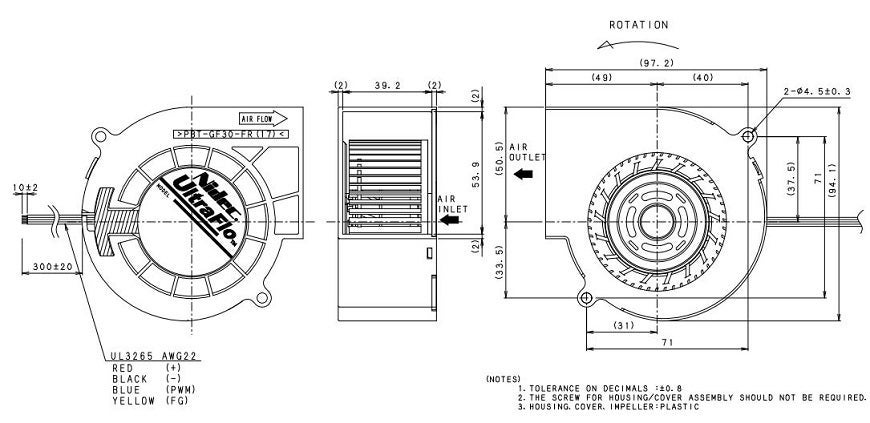

Drawing

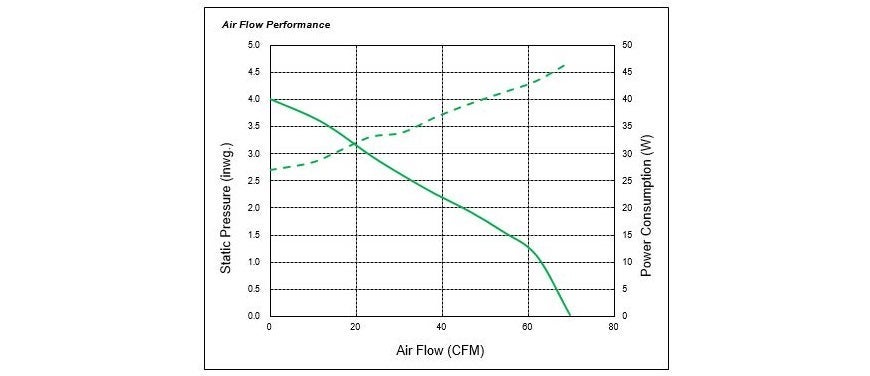

Characteristic chart
