Glossary of Motor Terms
Riser

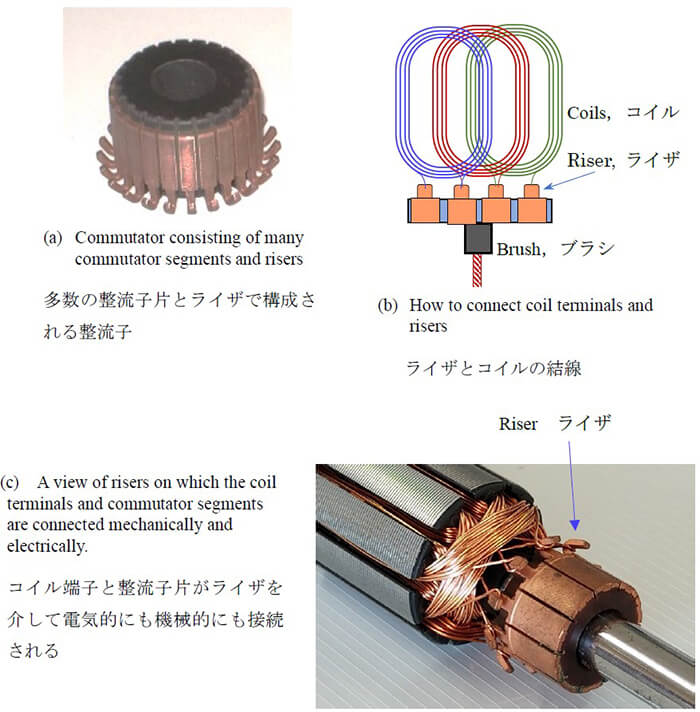

The commutator in figure (a) is made up of three or more commutator segments. One part of the commutator segment, the part which can be raised, is called a “commutator riser”, or more succinctly a riser. The riser electrically and mechanically connects the start terminal and finish terminal of adjacent coils. Figure (b), shows the connections between terminals and risers.
