Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）

G90T M AZ

companies handling the product：Nidec Corporation

General-use DC Sirocco fan

Direct-current drive operated general fan motor.The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.

characteristics:: RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W93×H93 mm
Size	W3.661×H3.661 inch
Length	25 mm
Length	0.984 inch
Operation temperature	-10～70 ℃
Lifespan	30000H（40℃）
Mass	110 g
Bearing	Sleeve bearings
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	12 V7～13.2 V
Operating current	0.37 A

Output
Rated speed	2600 min-1
Maximum air flow (m3/min)	0.4 m3/min
Maximum air flow (CFM)	14.1 CFM
Maximum static pressure(Pa)	185 Pa
Maximum static pressure(inchH2O)	0.74 inchH2O
Sound pressure(dB[A])	38.5 dB[A]

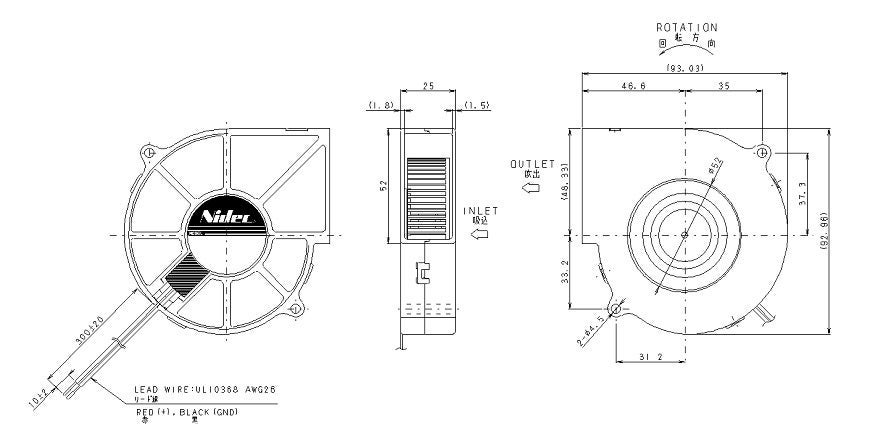

Drawing

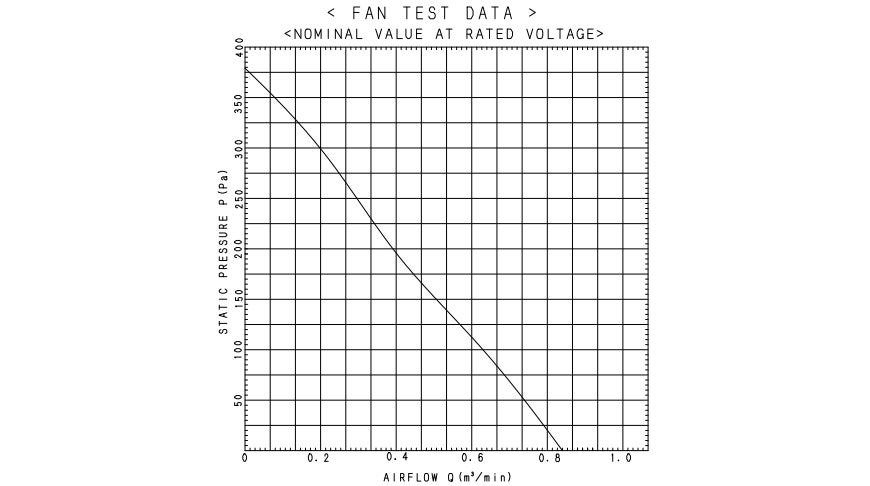

Characteristic chart
