Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G76B
companies handling the product：Nidec Corporation
General-use DC blower fan (76 x 76 x 27 mm)
A direct-current drive operated, fan motor that uses centrifugal method to blow air. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Long life,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W76×H76 mm |
| Size | W2.992×H2.992 mm |
| Length | 27 mm |
| Length | 1.063 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 50000 |
| Mass | 95～95 ℃ |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | 0.4～0.4 A |
| Rated input | 4.8～4.8 W |
| Rated speed | 4000～4000 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.424～0.424 m3/min |
| Maximum air flow (CFM) | 15～15 CFM |
| Maximum static pressure(Pa) | 160～160 Pa |
| Maximum static pressure(inchH2O) | 0.64～0.64 inchH2O |
| Sound pressure(dB[A]) | 49～49 dB[A] |

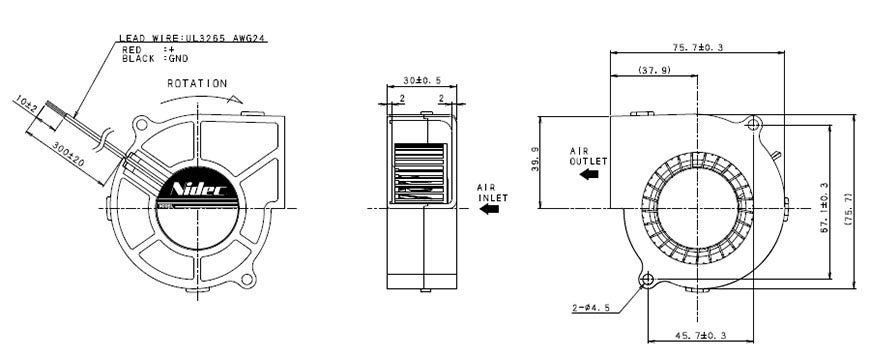

Drawing

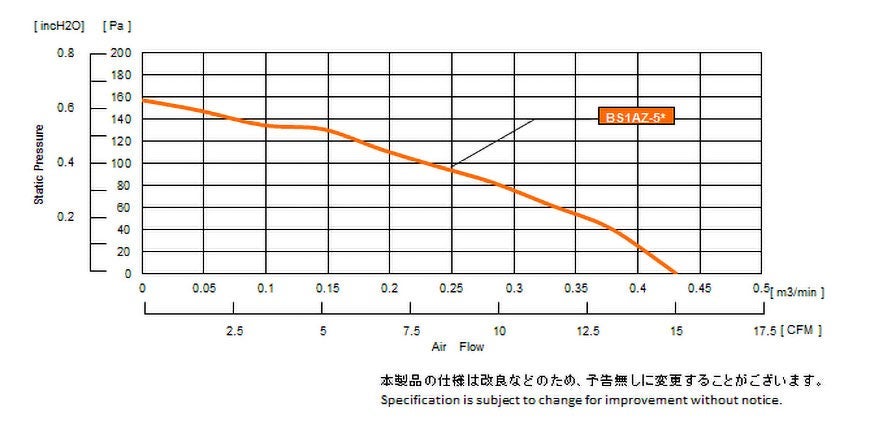

Characteristic chart
