Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）

G60T M EZ

companies handling the product：Nidec Corporation

General-use DC Sirocco fan

A direct-current drive operated, fan motor that uses centrifugal method to blow air. The sleeve bearing type has lubricating oil enclosed within the sleeve around the axle, resulting in minimized friction and in excellent noise characteristics. Please contact us for details.

characteristics:: RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W59.3×H59.8 mm
Size	W2.334×H2.354 inch
Length	23 mm
Length	0.905 inch
Operation temperature	0～50 ℃
Lifespan	30,000H
Mass	50 g
Bearing	Sleeve bearings
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	24 V22.8～26.3 V
Operating current	0.26 A

Output
Rated speed	6000 min-1
Maximum air flow (m3/min)	0.36 m3/min
Maximum air flow (CFM)	12.71 CFM
Maximum static pressure(Pa)	344.7 Pa
Maximum static pressure(inchH2O)	0.32 inchH2O
Sound pressure(dB[A])	48 dB[A]

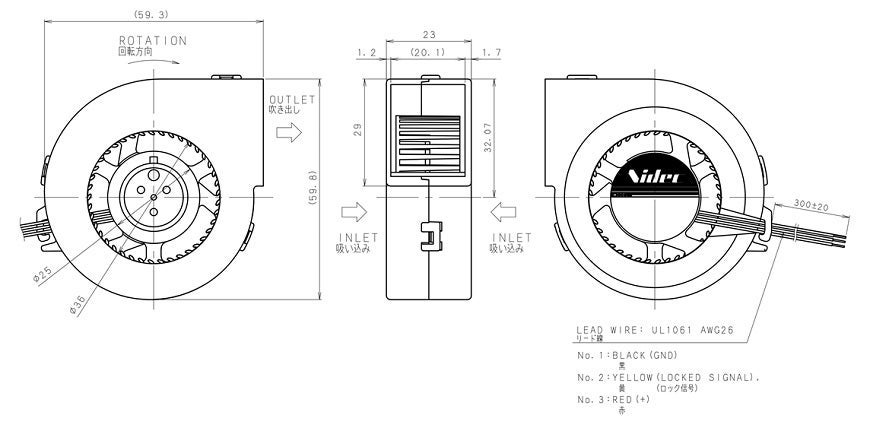

Drawing

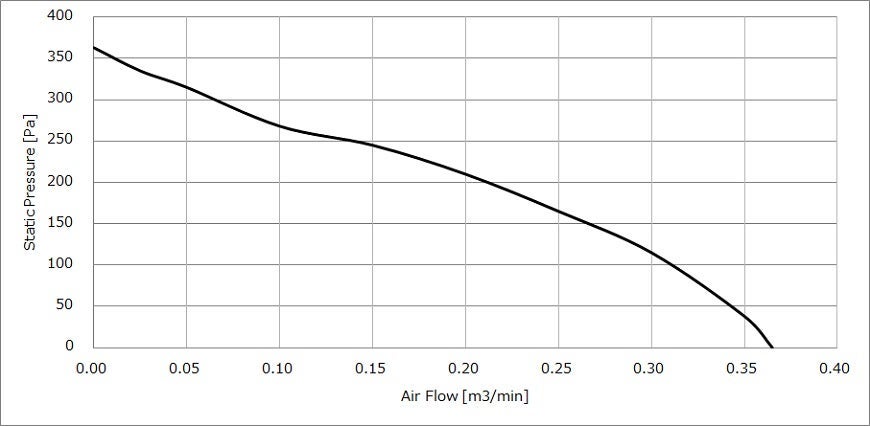

Characteristic chart
