Small-size and precision motors｜Fans & Blowers｜Blower（Centrifugal fan）
G50X Series
companies handling the product：Nidec Corporation
Thin, high efficiency, low vibration
Thin fan motor, sirocco fan type, size Φ50*10.
- characteristics:
- Thin sirocco type fan motor
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Sort by power source type | DC |
|---|---|
| Size | 50 mm |
| Size | 1.97 inch |
| Length | 10 mm |
| Length | 0.39 inch |
| Operation temperature | ‐10～70℃ |
| Lifespan | 50,000H（40℃） |
| Mass | 20ｇ |
| Bearing | Sleeve bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 4 ～ 5.5 V |
|---|
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

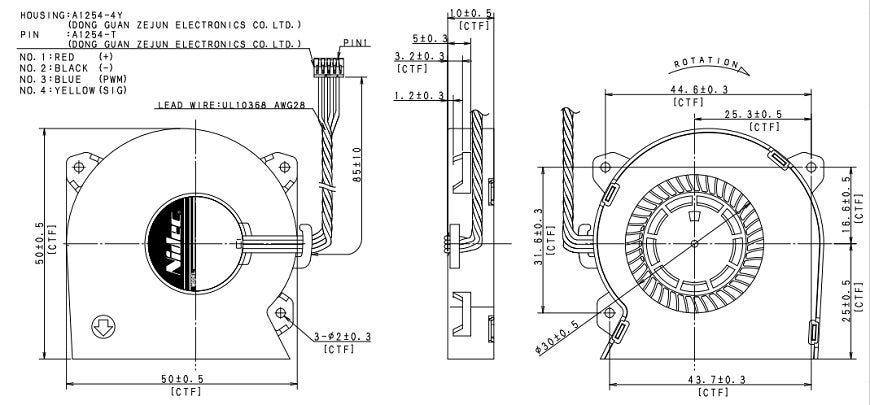

Drawing

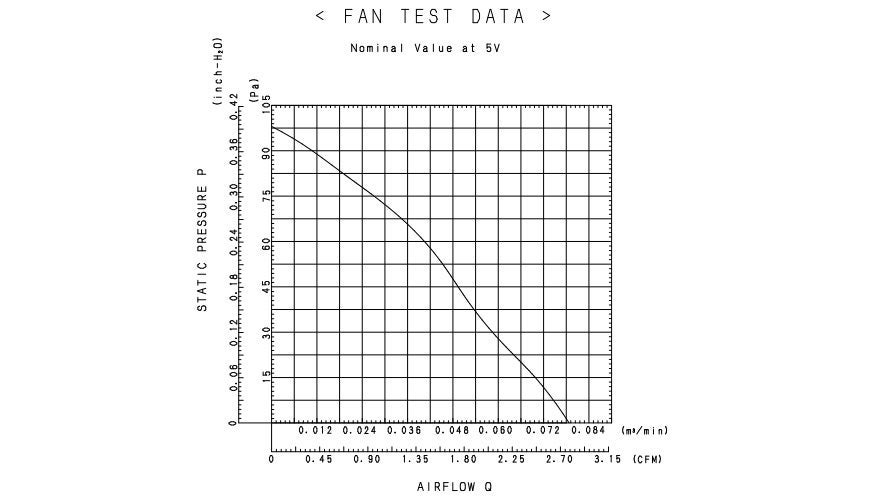

Characteristic chart
