Small-size and precision motors｜Fans & Blowers｜DC axial fan
V80T-B3
companies handling the product：Nidec Corporation
General-use DC axial flow fan（80x80x25mm）
- characteristics:
- Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W80×H80 mm |
| Size | □3.15 |
| Length | 38 mm |
| Length | 0.984 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 70000 |
| Mass | 140～140 ℃ |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 10.2～13.8 V |
|---|---|
| Operating current | 0.48～0.53 A |
| Rated input | 5.76～6.36 W |
| Rated speed | 9450～11550 min-1 |
|---|---|
| Maximum air flow (m3/min) | 1.18～1.39 m3/min |
| Maximum air flow (CFM) | 41.6～49 CFM |
| Maximum static pressure(Pa) | 380～494 Pa |
| Maximum static pressure(inchH2O) | 1.52～1.98 inchH2O |
| Sound pressure(dB[A]) | 57～61 dB[A] |

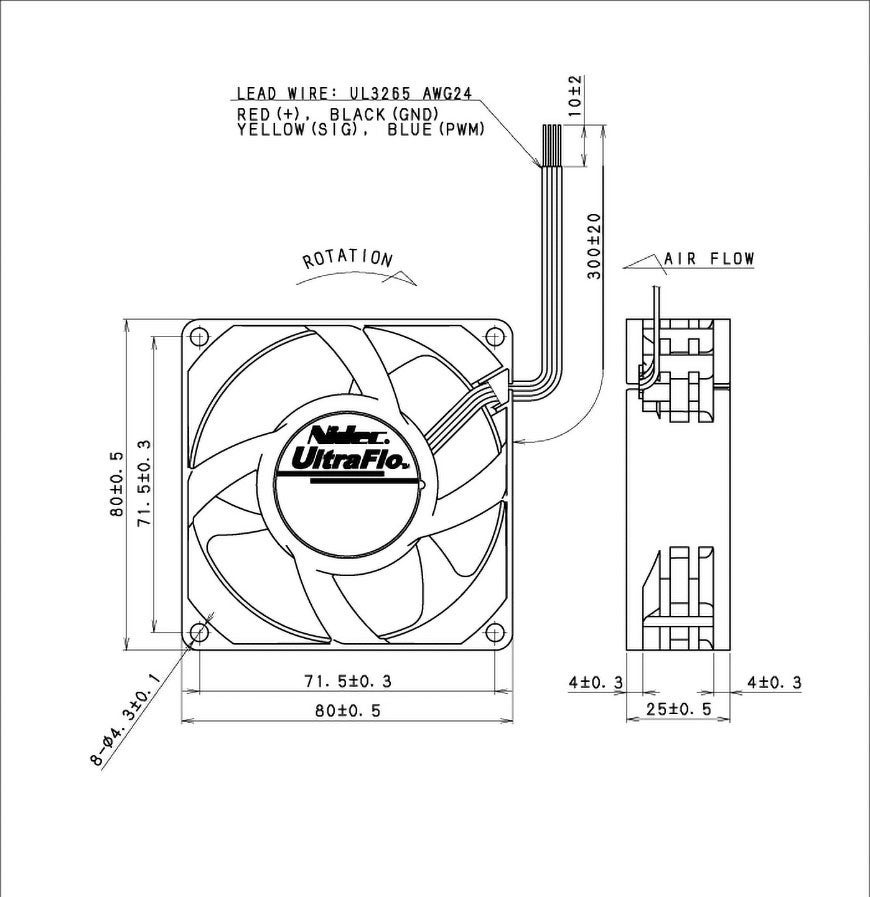

Drawing

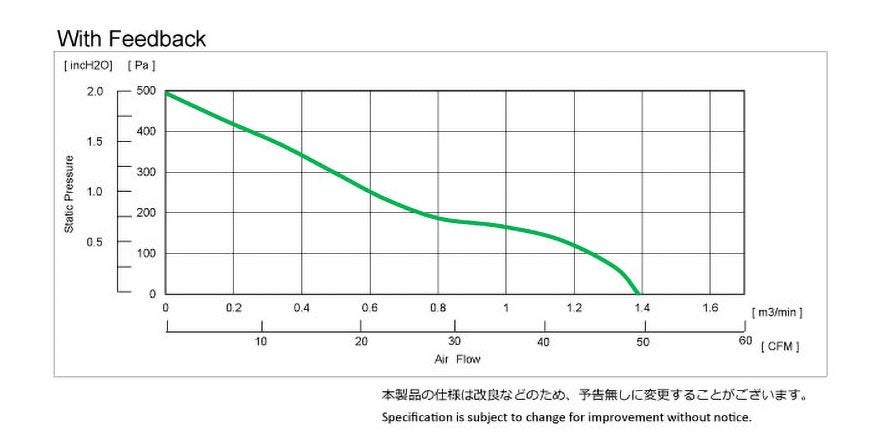

Characteristic chart
