Small-size and precision motors｜Fans & Blowers｜DC axial fan
V60E-D3
companies handling the product：Nidec Corporation
General-use DC axial flow fan（60x60x38mm）
- characteristics:
- 0,Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W60×H60 mm |
| Size | □4.134 |
| Length | 38 mm |
| Length | 1.496 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 70000 |
| Mass | 150～150 ℃ |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 10.2～13.8 V |
|---|---|
| Operating current | 0.9～0.99 A |
| Rated input | 10.8～11.88 W |
| Rated speed | 16200～19800 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.94～1.11 m3/min |
| Maximum air flow (CFM) | 33.1～39.1 CFM |
| Maximum static pressure(Pa) | 845～1099 Pa |
| Maximum static pressure(inchH2O) | 3.39～4.41 inchH2O |
| Sound pressure(dB[A]) | 62～67 dB[A] |

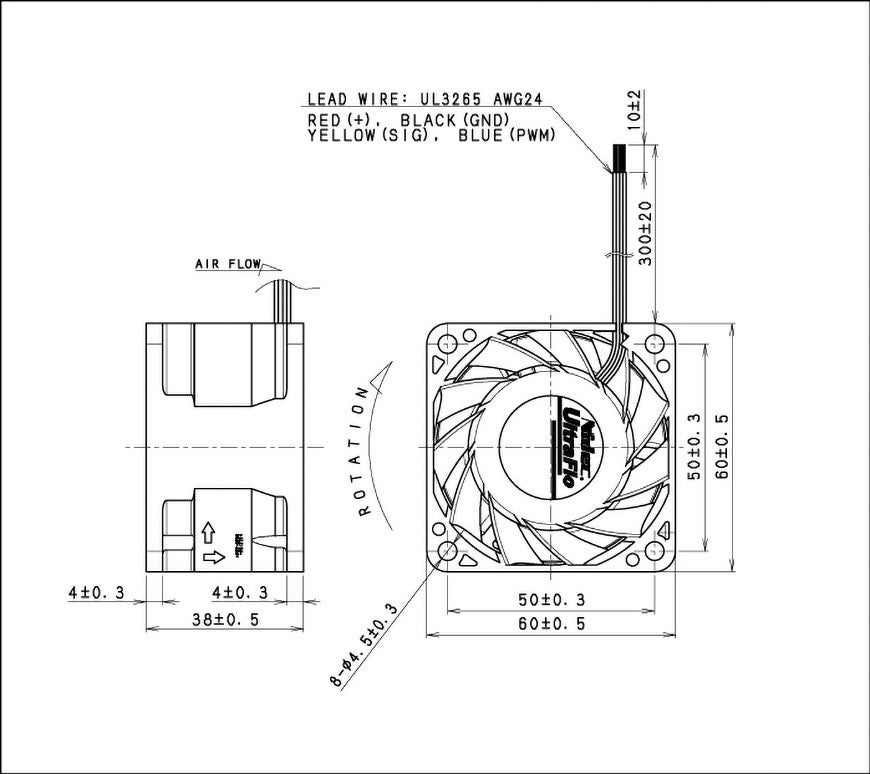

Drawing

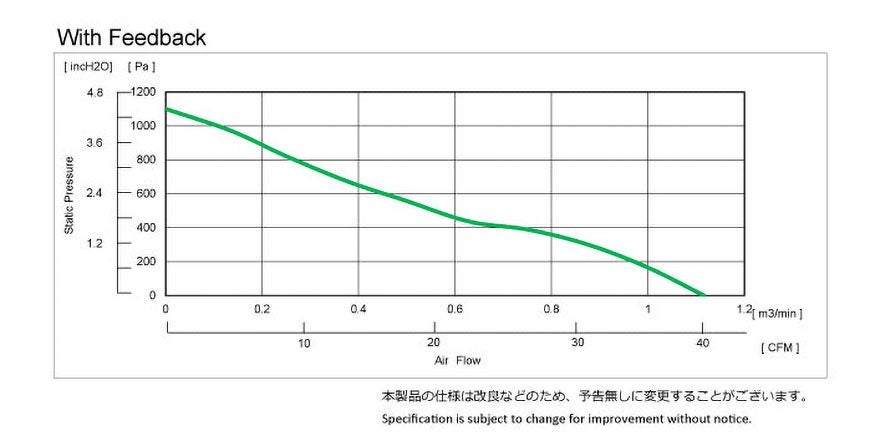

Characteristic chart
