Small-size and precision motors｜Fans & Blowers｜DC axial fan

V40S-E5

companies handling the product：Nidec Corporation

General-use DC axil flow fan（40x40x28mm）

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,quietness,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W40×H40 mm
Size	□3.622
Length	28 mm
Length	1.102 mm
Operation temperature	-10～70 ℃
Lifespan	70000
Mass	60～60 ℃
Bearing	Ball bearing
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	12 V10.8～13.2 V
Operating current	1.61 A1.61～1.77 A
Rated input	19.3 W19.3～21.2 W

Output
Rated speed	25000 min-122500～27500 min-1
Maximum air flow (m3/min)	0.86 m3/min0.73～0.86 m3/min
Maximum air flow (CFM)	30.3 CFM25.7～30.3 CFM
Maximum static pressure(Pa)	998 Pa767～998 Pa
Maximum static pressure(inchH2O)	4 inchH2O3.08～4 inchH2O
Sound pressure(dB[A])	64 dB[A]64～69 dB[A]

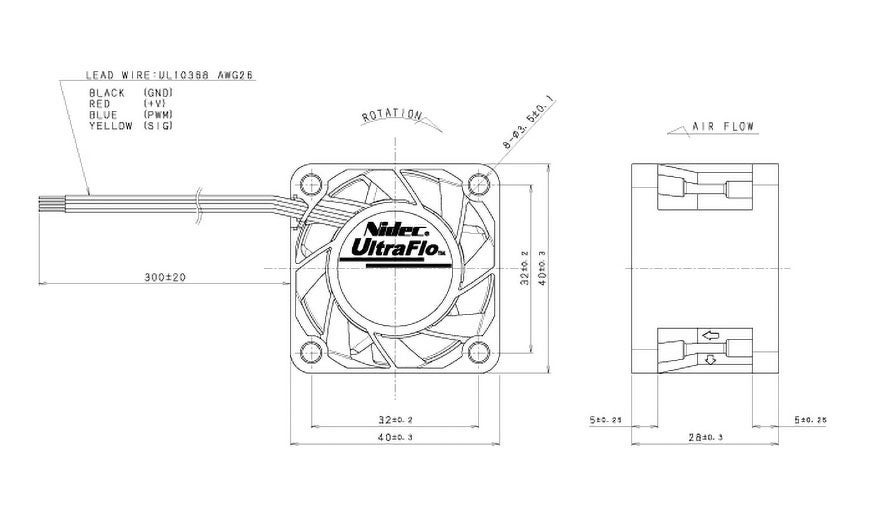

Drawing

Characteristic chart
