Small-size and precision motors｜Fans & Blowers｜DC axial fan

U80T-C7

companies handling the product：Nidec Corporation

General-use DC axial flow fan（80x80x25mm）

Direct-current drive operated general fan motor.The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

Sort by power source type	DC
Size	W80×H80 mm
Length	25 mm
Operation temperature	-10～70 ℃
Lifespan	45000
Mass	85 g
Bearing	NBRX
Companies handling the product	NIDEC CORPORATION

Input
Rated voltage	24 V10～27.6 V
Operating current	0.13 A0.13～0.143 A
Rated input	3.12 W

Output
Rated speed	3400 min-13060～3740 min-1
Maximum air flow (m3/min)	1.19 m3/min0.95～1.19 m3/min
Maximum air flow (CFM)	42.02 CFM33.55～42.02 CFM
Maximum static pressure(Pa)	44.1 Pa35.3～44.1 Pa
Maximum static pressure(inchH2O)	0.17 inchH2O0.14～0.17 inchH2O
Sound pressure(dB[A])	35.5 dB[A]35.5～40 dB[A]

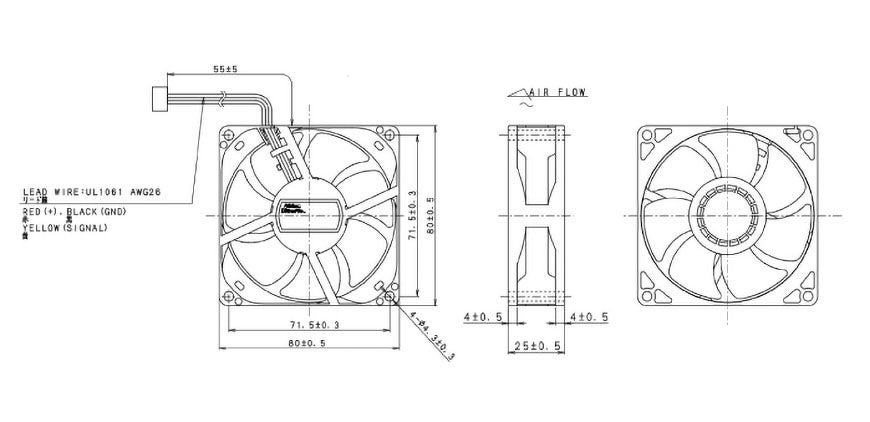

Drawing

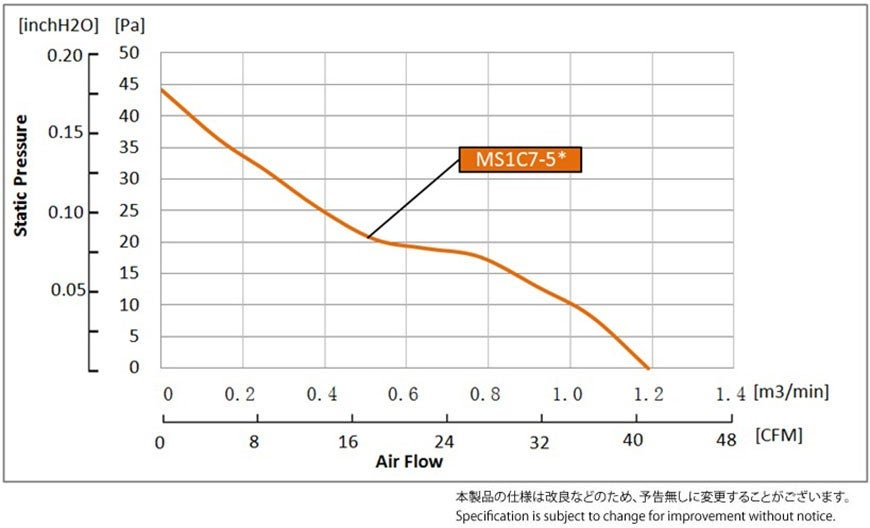

Characteristic chart
