Small-size and precision motors|Fans & Blowers|DC axial fan

U70R-CB

companies handling the product:Nidec Corporation

High-functionality fan UltraFlo series (70 x 70 x 15 mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.

characteristics:
Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W70×H70 mm
Size □2.756
Length 15 mm
Length 0.591 mm
Operation temperature -10~70 ℃
Lifespan 30000
Mass 49~49 ℃
Bearing NBRX
Companies handling the product NIDEC CORPORATION
Input
rated voltage 12 V7~13.8 V
Operating current 0.12 A0.12~0.12 A
Rated input 1.44 W1.44~1.44 W
Output
Rated speed 3000 min-13000~3000 min-1
Maximum air flow (m3/min) 0.64 m3/min0.64~0.64 m3/min
Maximum air flow (CFM) 22.6 CFM22.6~22.6 CFM
Maximum static pressure(Pa) 25 Pa25~25 Pa
Maximum static pressure(inchH2O) 0.1 inchH2O0.1~0.1 inchH2O
Sound pressure(dB[A]) 29 dB[A]29~29 dB[A]

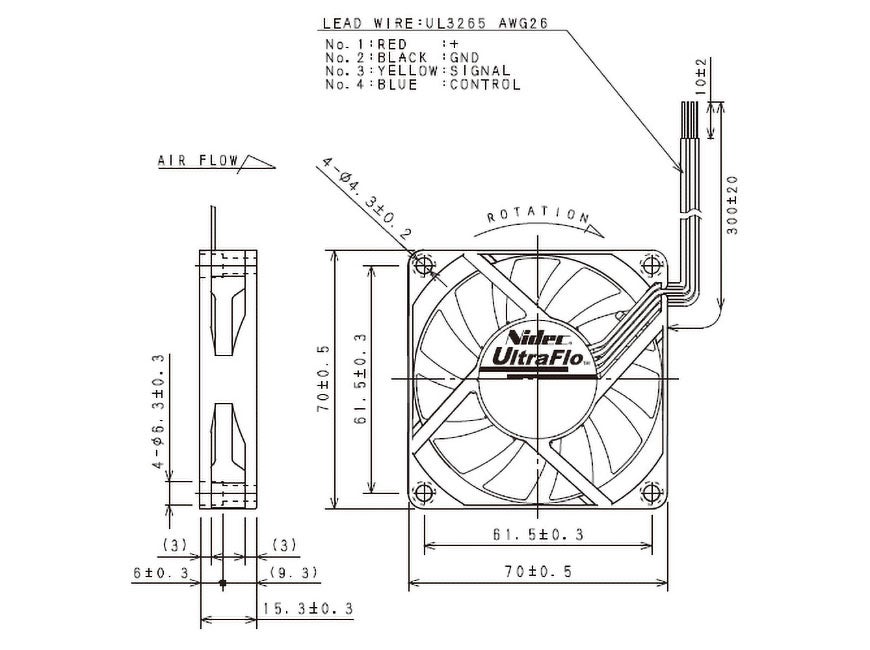

Drawing

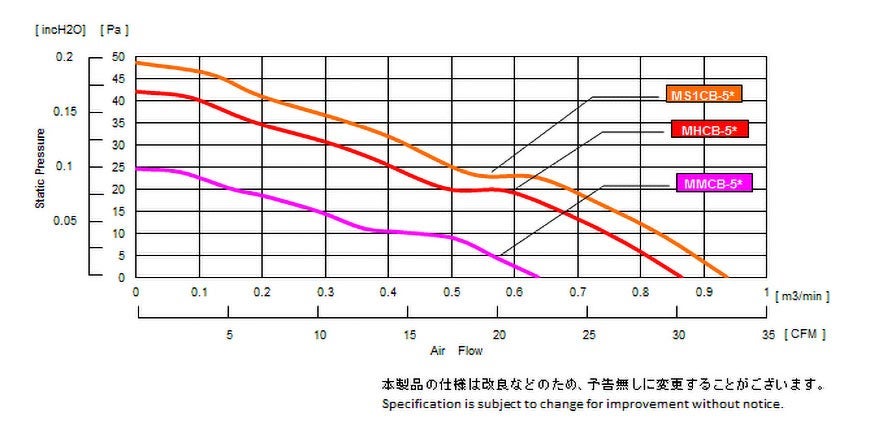

Characteristic chart
