Small-size and precision motors｜Fans & Blowers｜DC axial fan

U60T M CA7

companies handling the product：Nidec Corporation

General-use DC axial flow fan

Direct-current drive operated general fan motor. The sleeve bearing type has lubricating oil enclosed within the sleeve around the axle, resulting in minimized friction and in excellent noise characteristics. Please contact us for details.

characteristics:: RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W60×H60 mm
Size	□2.362 inch
Length	25 mm
Length	0.984 inch
Operation temperature	-10～70 ℃
Lifespan	50,000H
Mass	80 g
Bearing	Sleeve bearings
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	24 V10～27.6 V
Operating current	0.14 A

Output
Rated speed	5400 min-1
Maximum air flow (m3/min)	0.76 m3/min
Maximum air flow (CFM)	26.8 CFM
Maximum static pressure(Pa)	80 Pa
Maximum static pressure(inchH2O)	0.32 inchH2O
Sound pressure(dB[A])	37 dB[A]

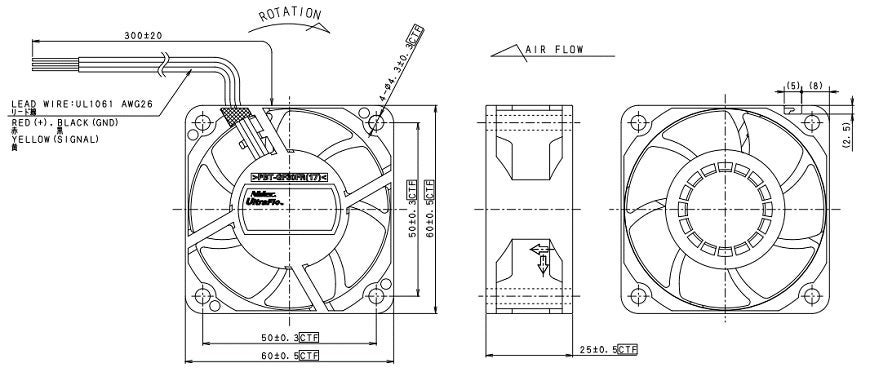

Drawing

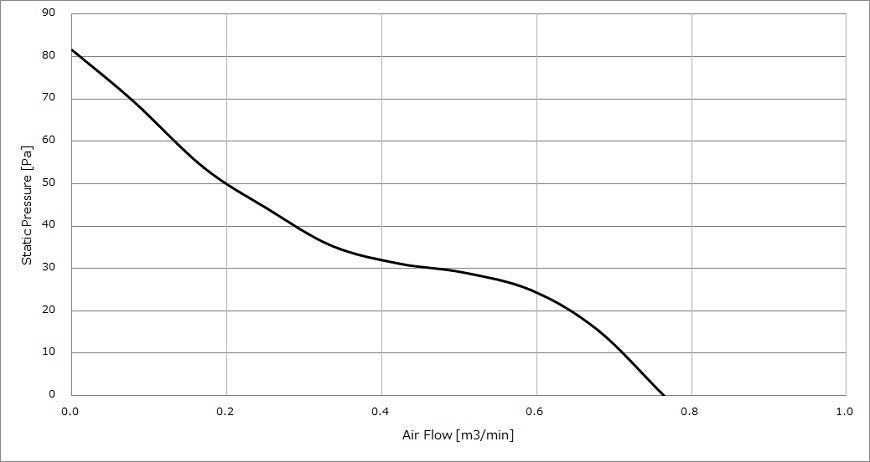

Characteristic chart
