Small-size and precision motors｜Fans & Blowers｜DC axial fan
U40X-Z7
companies handling the product：Nidec Corporation
High-functionality fan UltraFlo series (40 x 40 x 10 mm)
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting.Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W40×H40 mm |
| Size | □1.575 |
| Length | 10 mm |
| Length | 0.394 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 20～20 ℃ |
| Bearing | NBRX |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 4.25～5.75 V |
|---|---|
| Operating current | 0.23～0.23 A |
| Rated input | 1.15～1.15 W |
| Rated speed | 8000～8000 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.19～0.19 m3/min |
| Maximum air flow (CFM) | 6.71～6.71 CFM |
| Maximum static pressure(Pa) | 47～47 Pa |
| Maximum static pressure(inchH2O) | 0.19～0.19 inchH2O |
| Sound pressure(dB[A]) | 25.5～25.5 dB[A] |

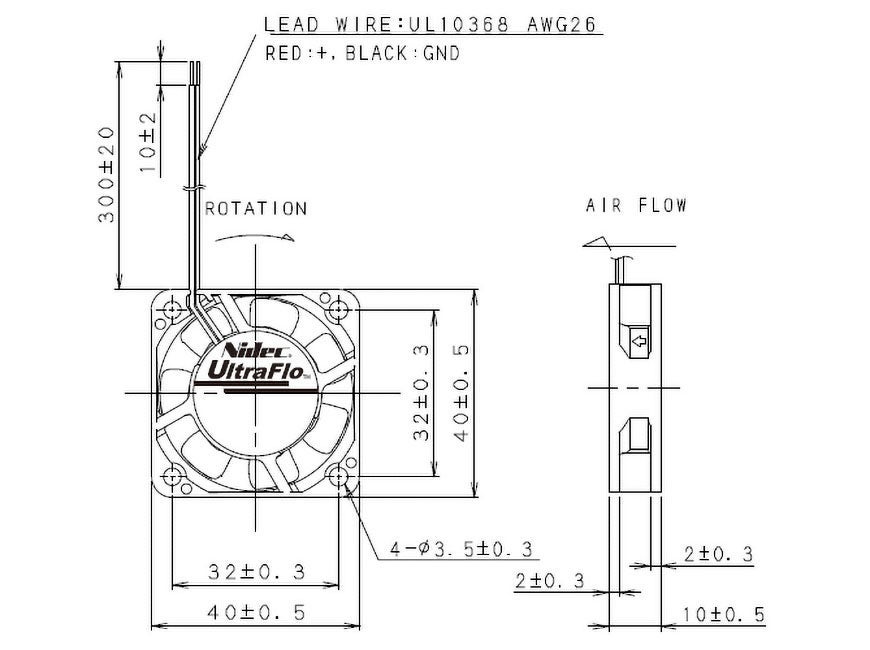

Drawing

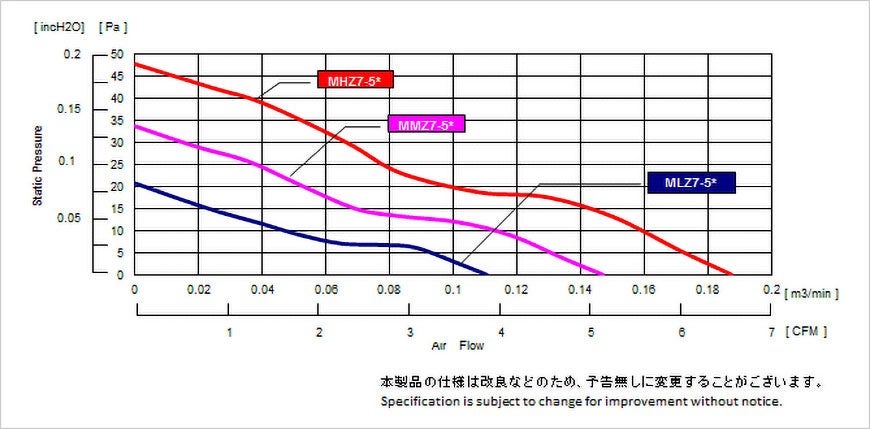

Characteristic chart
