Small-size and precision motors｜Fans & Blowers｜DC axial fan
U40G-M-A5
companies handling the product：Nidec Corporation
High-functionality fan UltraFlo series (40 x 40 x 20 mm)
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W40×H40 mm |
| Size | □1.575 |
| Length | 20 mm |
| Length | 0.787 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 25～25 ℃ |
| Bearing | Nidec Bearing Revolution |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 7～13.8 V |
|---|---|
| Operating current | 0.08～0.08 A |
| Rated input | 0.96～0.96 W |
| Rated speed | 7200～7200 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.32～0.32 m3/min |
| Maximum air flow (CFM) | 11.3～11.3 CFM |
| Maximum static pressure(Pa) | 52.2～52.2 Pa |
| Maximum static pressure(inchH2O) | 0.21～0.21 inchH2O |
| Sound pressure(dB[A]) | 32～32 dB[A] |

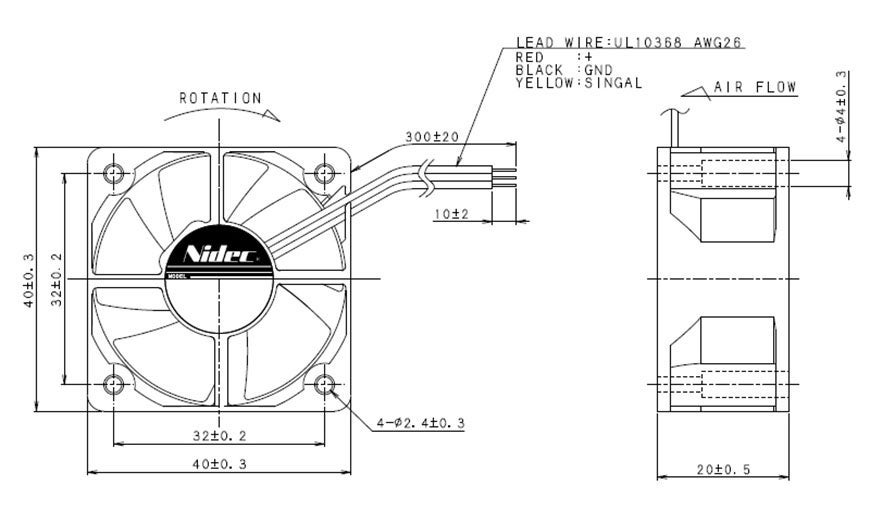

Drawing

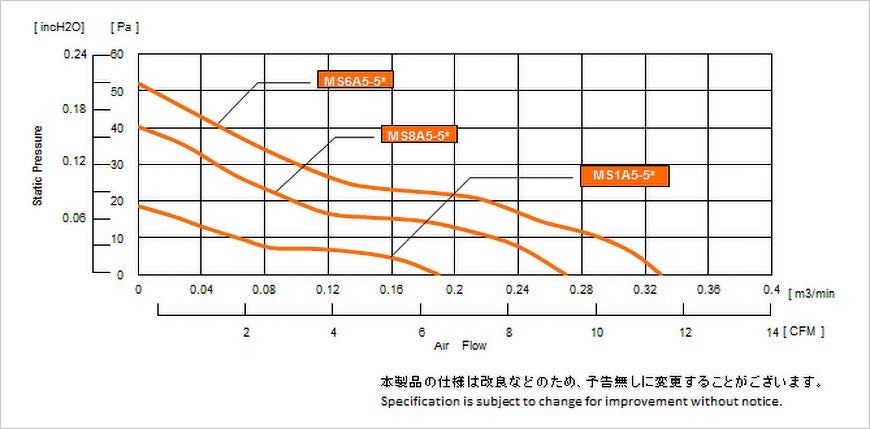

Characteristic chart
