Small-size and precision motors｜Fans & Blowers｜DC axial fan

U40G-M-A5

companies handling the product：Nidec Corporation

High-functionality fan UltraFlo series (40 x 40 x 20 mm)

A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.

characteristics:: Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W40×H40 mm
Size	□1.575
Length	20 mm
Length	0.787 mm
Operation temperature	-10～70 ℃
Lifespan	30000
Mass	25～25 ℃
Bearing	Nidec Bearing Revolution
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	12 V7～13.8 V
Operating current	0.028 A0.028～0.028 A
Rated input	0.336 W0.336～0.336 W

Output
Rated speed	4100 min-14100～4100 min-1
Maximum air flow (m3/min)	0.19 m3/min0.19～0.19 m3/min
Maximum air flow (CFM)	6.71 CFM6.71～6.71 CFM
Maximum static pressure(Pa)	18.5 Pa18.5～18.5 Pa
Maximum static pressure(inchH2O)	0.074 inchH2O0.074～0.074 inchH2O

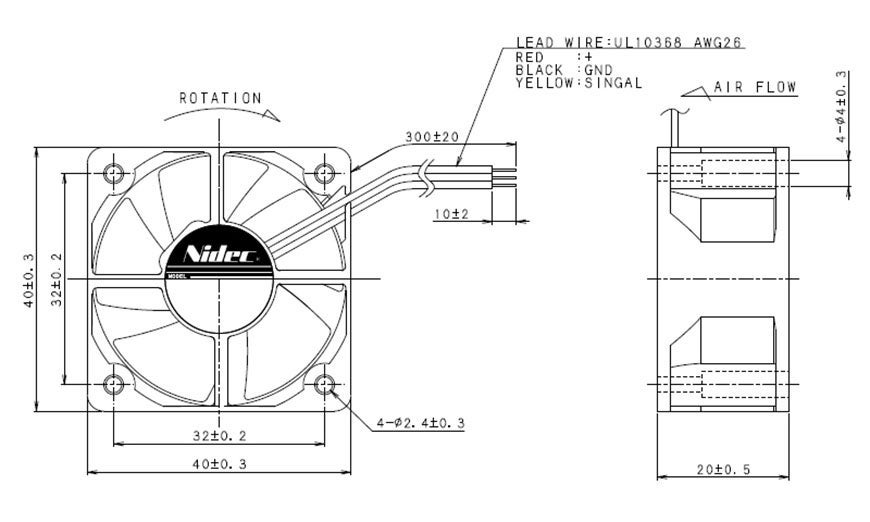

Drawing

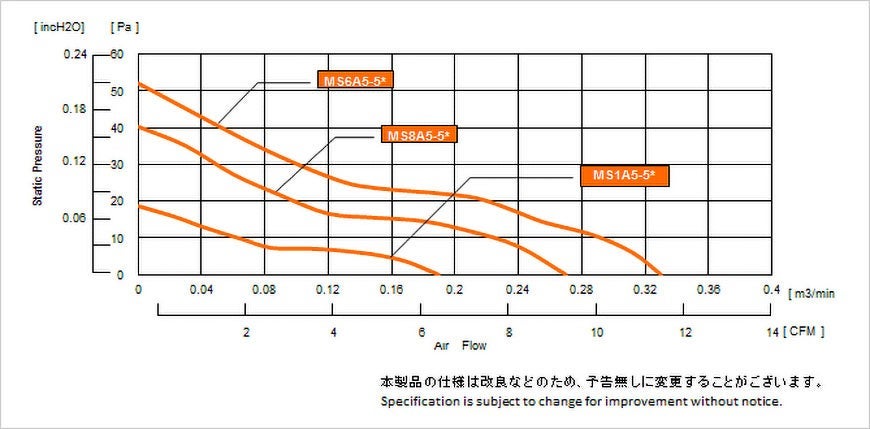

Characteristic chart
