Small-size and precision motors｜Fans & Blowers｜DC axial fan
U40G B A5
companies handling the product：Nidec Corporation
General-use DC axial flow fan
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.
- characteristics:
- RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Sort by power source type | DC |
|---|---|
| Size | W40×H40 mm |
| Size | □1.574 inch |
| Length | 20 mm |
| Length | 0.787 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30,000H（40℃） |
| Mass | 520 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 7～13.8 V |
|---|---|
| Operating current |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

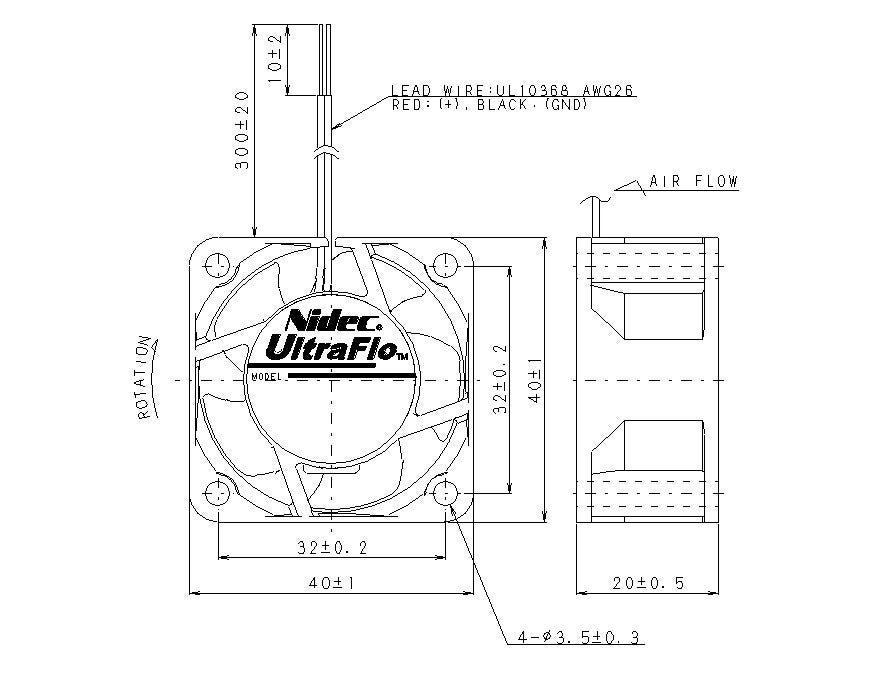

Drawing

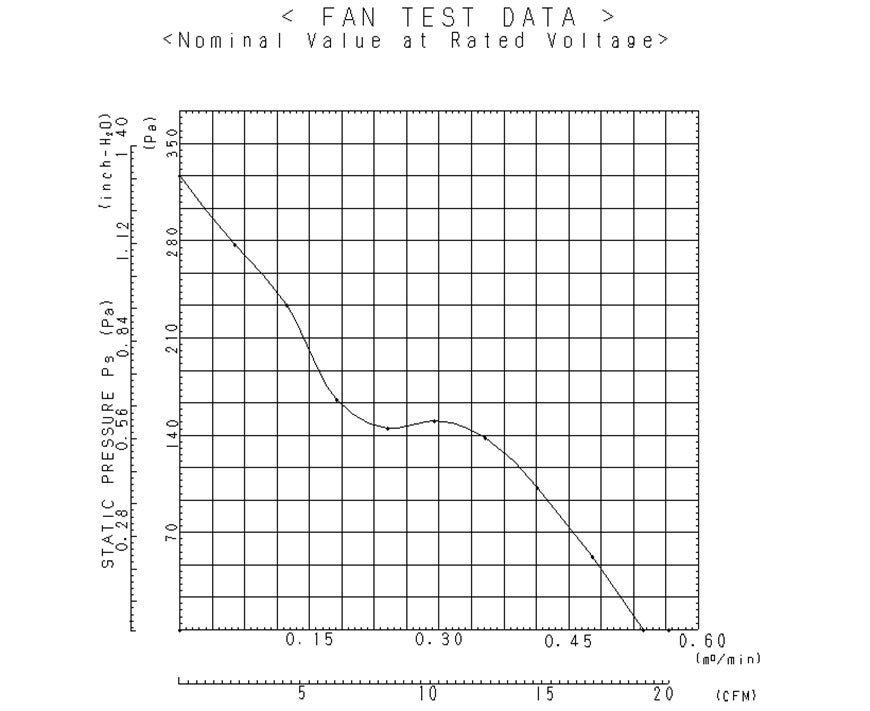

Characteristic chart
