Small-size and precision motors｜Fans & Blowers｜DC axial fan
T70T-A9
companies handling the product：Nidec Corporation
High-functionality fan UltraFlo series (70 x 70 x 25 mm)
A direct-current drive operated, high value-added fan motor that uses bearings and wing structures that we have developed independently. The NBRX type further improves the reliability of upon our former oil-impregnated sintered bearing, and is a totally new bearing system that we have developed independently. With a longer life than former oil-impregnated bearings, this can more securely retain rotating bodies, and features heat resistance, high-speed rotational stability, reduced magnetic vibration, and no limitations on mounting. Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W70×H70 mm |
| Size | □2.756 |
| Length | 25 mm |
| Length | 0.984 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 30000 |
| Mass | 85～85 ℃ |
| Bearing | NBRX |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 7～13.8 V |
|---|---|
| Operating current | 0.1～0.1 A |
| Rated input | 1.2～1.2 W |
| Rated speed | 2600～2600 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.68～0.68 m3/min |
| Maximum air flow (CFM) | 24～24 CFM |
| Maximum static pressure(Pa) | 26.7～26.7 Pa |
| Maximum static pressure(inchH2O) | 0.11～0.11 inchH2O |
| Sound pressure(dB[A]) | 25～25 dB[A] |

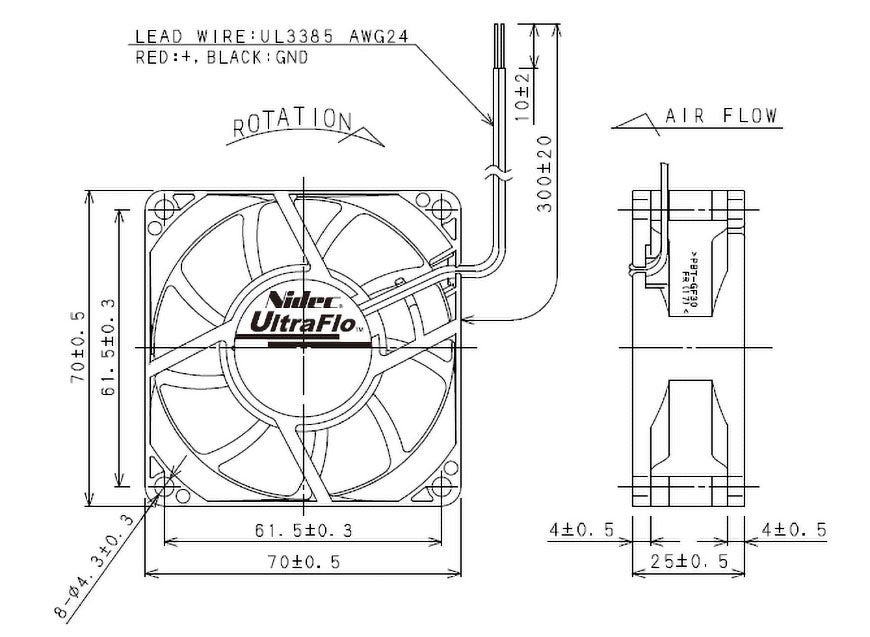

Drawing

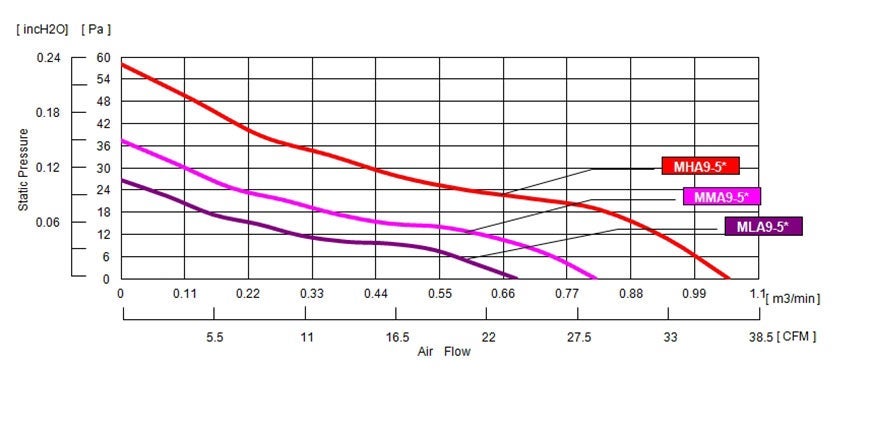

Characteristic chart
