Small-size and precision motors|Fans & Blowers|DC axial fan

R92K series [R92K-N9]

companies handling the product:Nidec Corporation

High power・Long expectancy・High Efficiency

High cooling performance is achieved by adopting a high-power motor and optimizing the wind tunnel . Pressure characteristic of fan motors is improved, which is the best choice for the requirement of long-distance wind supply. In addition, the adopting of ball bearings makes the fan motor have a longer service life.

characteristics:
92×76mm Counter Rotor fan
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size W92×H92 mm
Size □3.62 inch
Length 76 mm
Length 3.0 inch
Operation temperature -10~70 ℃
Lifespan 70000(40℃)
Mass 520 g
Bearing Ball bearing
Companies handling the product NIDEC CORPORATION
Input
rated voltage 54 V40~60 V
Operating current 2.16 A
Rated input 116.6 W
Output
Rated speed 13400 /12000 min-1
Maximum air flow (m3/min) 5.84 m3/min
Maximum air flow (CFM) 206.4 CFM
Maximum static pressure(Pa) 1769 Pa
Maximum static pressure(inchH2O) 7.11 inchH2O
Sound pressure(dB[A]) 85.5 dB[A]

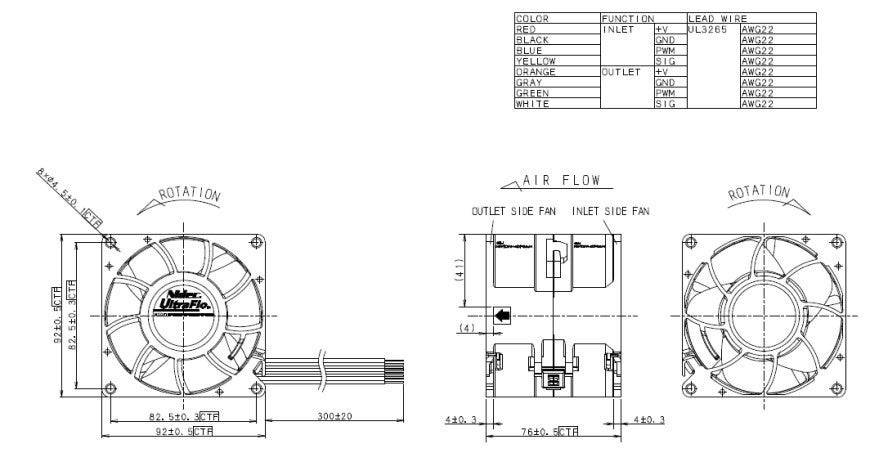

Drawing

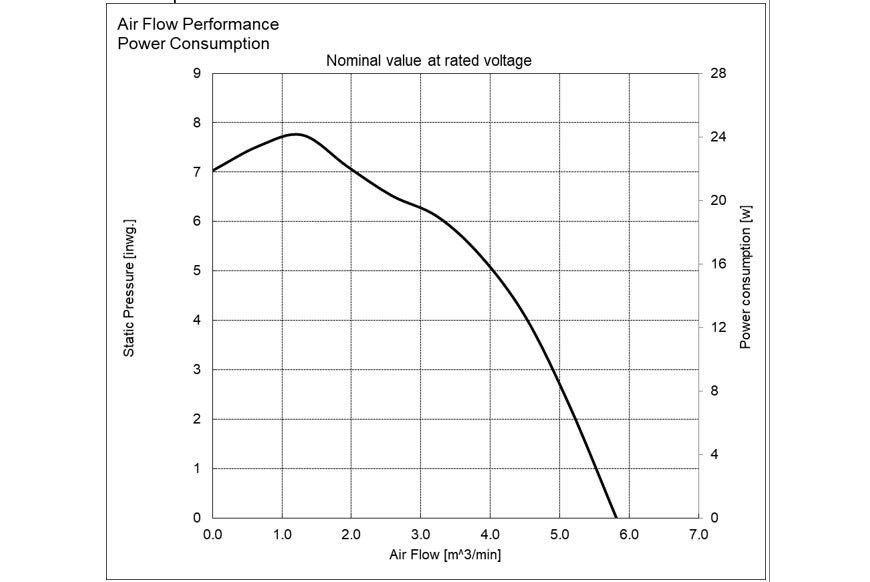

Characteristic chart
