Small-size and precision motors｜Fans & Blowers｜DC axial fan
R60W series [R60W-ME9]
companies handling the product：Nidec Corporation
Counter-rotating fan (80x56mm)
High cooling performance is achieved by adopting a high-power motor and optimizing the wind tunnel . Pressure characteristic of fan motors is improved, which is the best choice for the requirement of long-distance wind supply. In addition, the adopting of ball bearings makes the fan motor have a longer service life.
- Characteristics:
- High output, long life, high efficiency
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Sort by power source type | DC |
|---|---|
| Size | W60×H60 mm |
| Size | □2.36 inch |
| Length | 56 mm |
| Length | 2.2 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 70,000（40℃） |
| Mass | 200 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | |
| Rated input |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

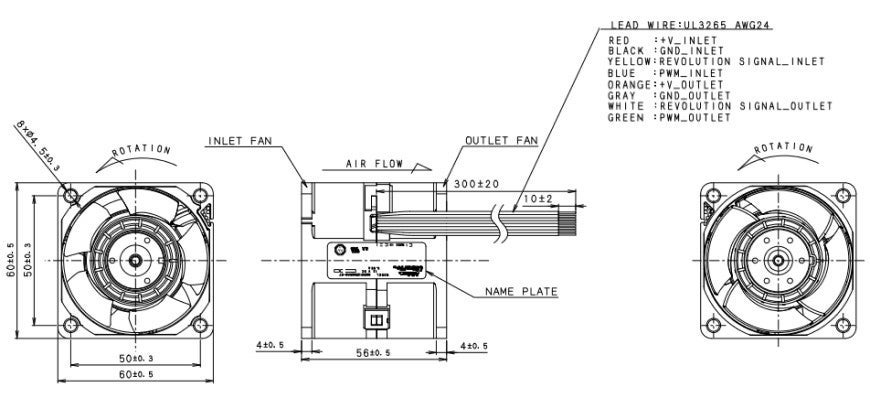

Drawing

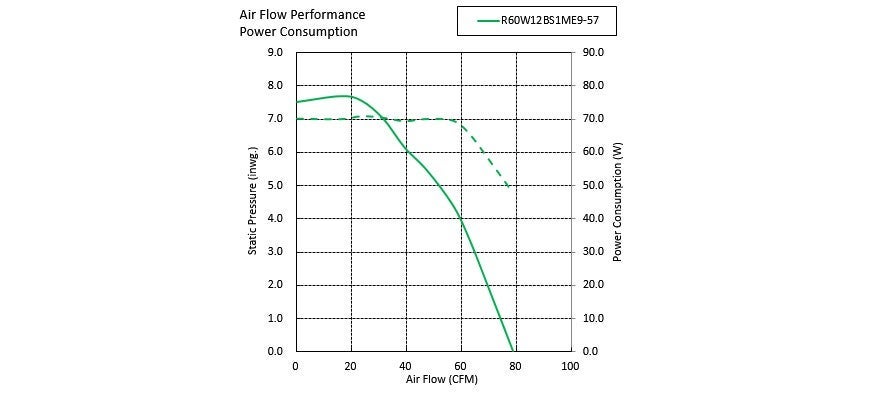

Characteristic chart
