Small-size and precision motors｜Fans & Blowers｜DC axial fan
R40W-F9
companies handling the product：Nidec Corporation
High power・Long expectancy・High Efficiency
High cooling performance is achieved by adopting a high-power motor and optimizing the wind tunnel . Pressure characteristic of fan motors is improved, which is the best choice for the requirement of long-distance wind supply. In addition, the adopting of ball bearings makes the fan motor have a longer service life.
- characteristics:
- 40×56ｍｍ Counter Rotor fan
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| Sort by power source type | DC |
|---|---|
| Size | W40×H40 mm |
| Size | □1.57 inch |
| Length | 56 mm |
| Length | 2.2 inch |
| Operation temperature | -10～70 ℃ |
| Lifespan | 70,000（40℃） |
| Mass | 90 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | |
| Rated input |
| Rated speed | |
|---|---|
| Maximum air flow (m3/min) | |
| Maximum air flow (CFM) | |
| Maximum static pressure(Pa) | |
| Maximum static pressure(inchH2O) | |
| Sound pressure(dB[A]) |

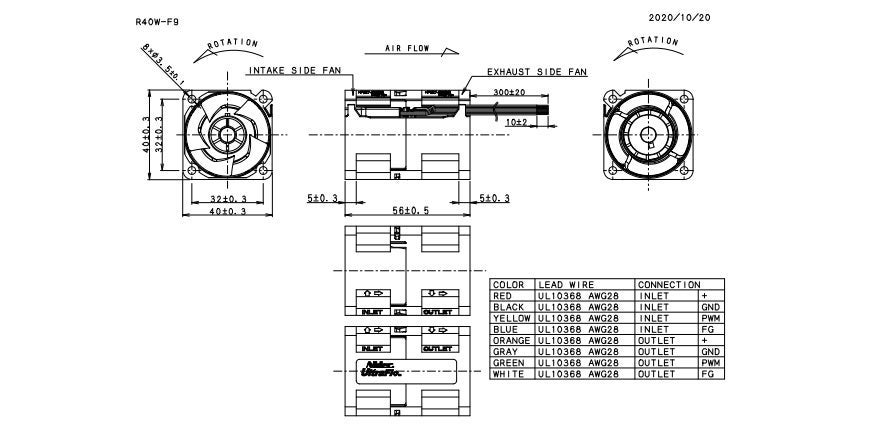

Drawing
Characteristic chart
