Small-size and precision motors｜Fans & Blowers｜DC axial fan
D06X
companies handling the product：Nidec Corporation
General-use DC axial flow fan (60 x 60 x 10 mm)
Direct-current drive operated general fan motor. The ball bearing type used in ball bearings introduces a ball between the rotor axis and the stator, providing smooth rotation, and thus has the characteristic of not generating extra heat in the rotor and stator. The service life of fan motors is dependent on deterioration caused by increased temperatures, and bearings using ball bearings are considered to provide long service life. Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | W60×H60 mm |
| Size | □2.362 |
| Length | 10 mm |
| Length | 0.394 mm |
| Operation temperature | -10～60 ℃ |
| Lifespan | 30000 |
| Mass | 29～29 ℃ |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 10.8～13.2 V |
|---|---|
| Operating current | 0.19～0.19 A |
| Rated input | 2.28～2.28 W |
| Rated speed | 5000～5000 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.55～0.55 m3/min |
| Maximum air flow (CFM) | 19.4～19.4 CFM |
| Maximum static pressure(Pa) | 39～39 Pa |
| Maximum static pressure(inchH2O) | 0.16～0.16 inchH2O |
| Sound pressure(dB[A]) | 35～35 dB[A] |

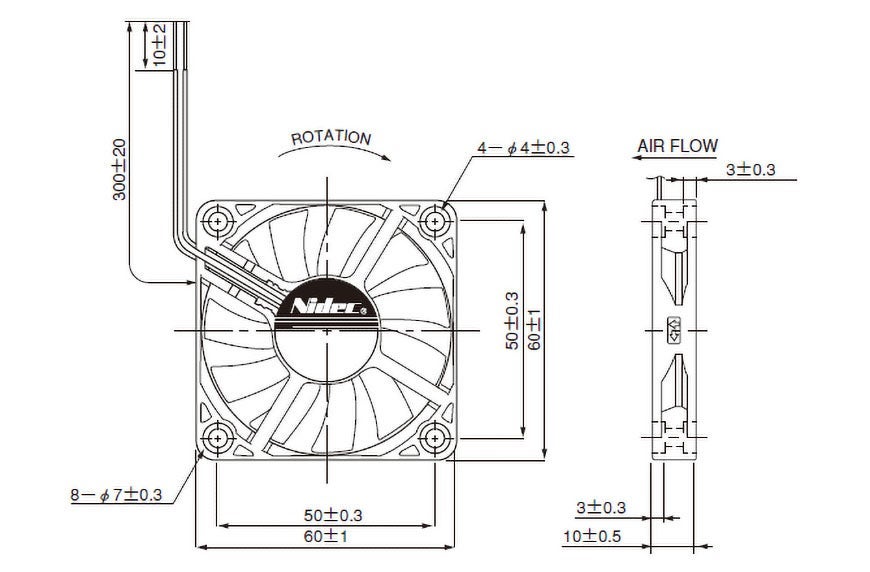

Drawing

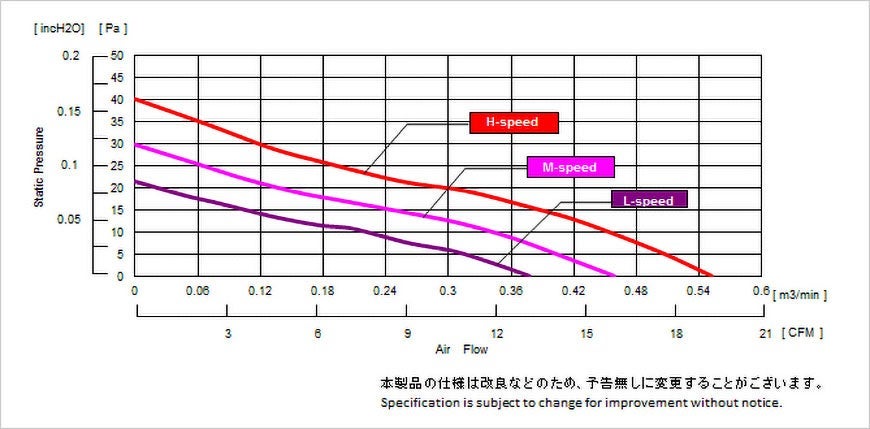

Characteristic chart
