Small-size and precision motors｜Fans & Blowers｜DC axial fan

D02X (CX)

companies handling the product：Nidec Corporation

General-use DC axial flow fan (25 x 25 x 10 mm)

Direct-current drive operated general fan motor.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.

characteristics:: Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W25×H25 mm
Size	□0.984
Length	10 mm
Length	0.394 mm
Operation temperature	-10～70 ℃
Lifespan	20000
Mass	8～8 ℃
Bearing	Nidec Bearing Revolution
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	12 V10.2～13.8 V
Operating current	0.07 A0.07～0.07 A
Rated input	0.84 W0.84～0.84 W

Output
Rated speed	12000 min-112000～12000 min-1
Maximum air flow (m3/min)	0.06 m3/min0.06～0.06 m3/min
Maximum air flow (CFM)	2.15 CFM2.15～2.15 CFM
Maximum static pressure(Pa)	45 Pa45～45 Pa
Maximum static pressure(inchH2O)	0.18 inchH2O0.18～0.18 inchH2O
Sound pressure(dB[A])	21 dB[A]21～21 dB[A]

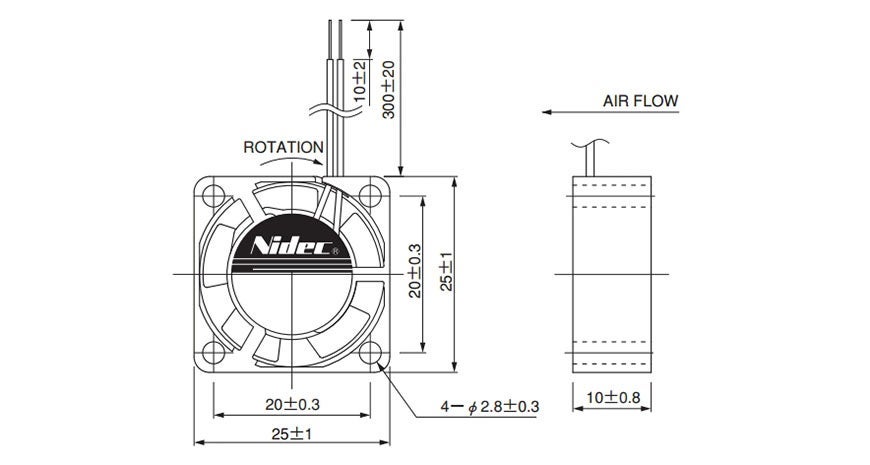

Drawing

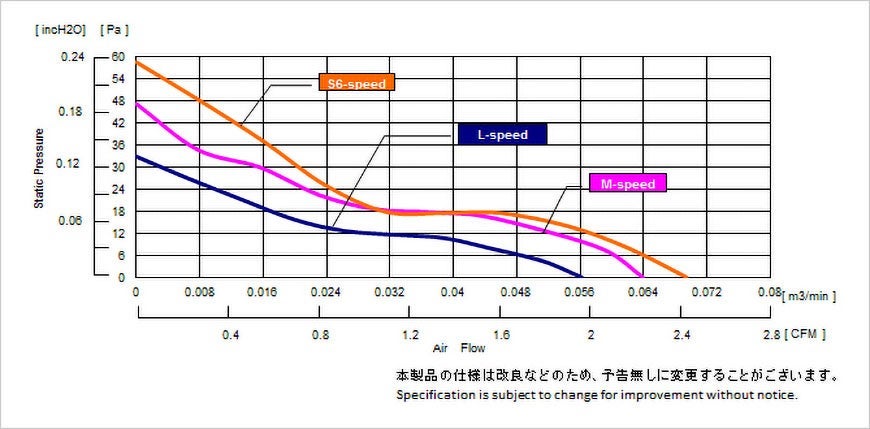

Characteristic chart
