Small-size and precision motors｜Fans & Blowers｜DC axial fan

D02X (CX)

companies handling the product：Nidec Corporation

General-use DC axial flow fan (25 x 25 x 10 mm)

Direct-current drive operated general fan motor.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.

characteristics:: Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	W25×H25 mm
Size	□0.984
Length	10 mm
Length	0.394 mm
Operation temperature	-10～70 ℃
Lifespan	20000
Mass	8～8 ℃
Bearing	Nidec Bearing Revolution
Companies handling the product	NIDEC CORPORATION

Input
rated voltage	12 V10.2～13.8 V
Operating current	0.06 A0.06～0.06 A
Rated input	0.72 W0.72～0.72 W

Output
Rated speed	10000 min-110000～10000 min-1
Maximum air flow (m3/min)	0.05 m3/min0.05～0.05 m3/min
Maximum air flow (CFM)	1.77 CFM1.77～1.77 CFM
Maximum static pressure(Pa)	33 Pa33～33 Pa
Maximum static pressure(inchH2O)	0.13 inchH2O0.13～0.13 inchH2O
Sound pressure(dB[A])	19 dB[A]19～19 dB[A]

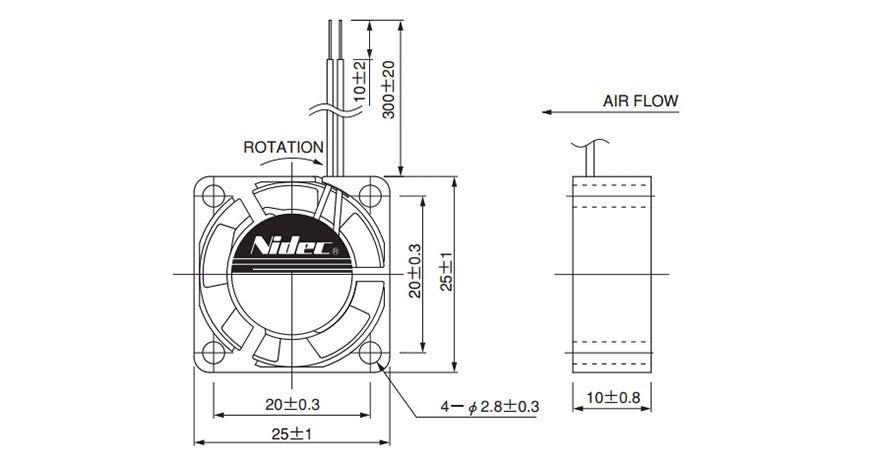

Drawing

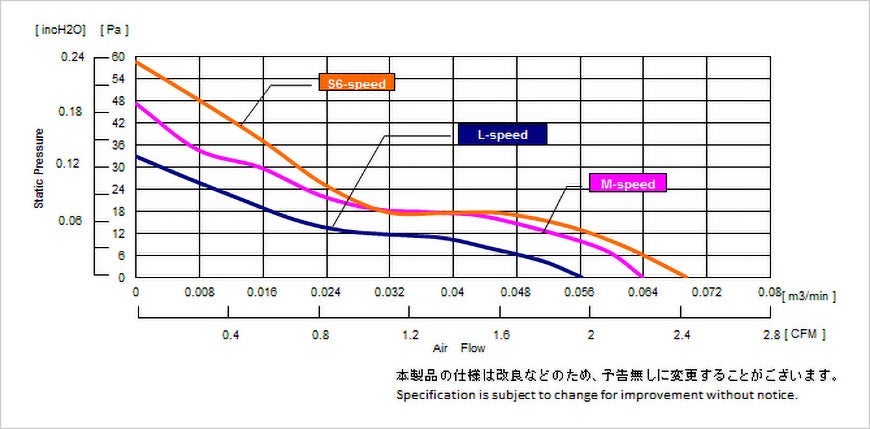

Characteristic chart
