Small-size and precision motors｜Fans & Blowers｜DC axial fan
D02X (CX)
companies handling the product：Nidec Corporation
General-use DC axial flow fan (25 x 25 x 10 mm)
Direct-current drive operated general fan motor.The Nidec Bearing Revolution (NBR) bearing type overcomes the service life and durability issues of the former sleeve bearing. This is a high-functionality model that we have developed independently, and it uses oil-impregnated sintered bearings.Please contact us for details.
- characteristics:
- Low noise,Low vibration,Energy saving,Enviromental performance,quietness,RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|

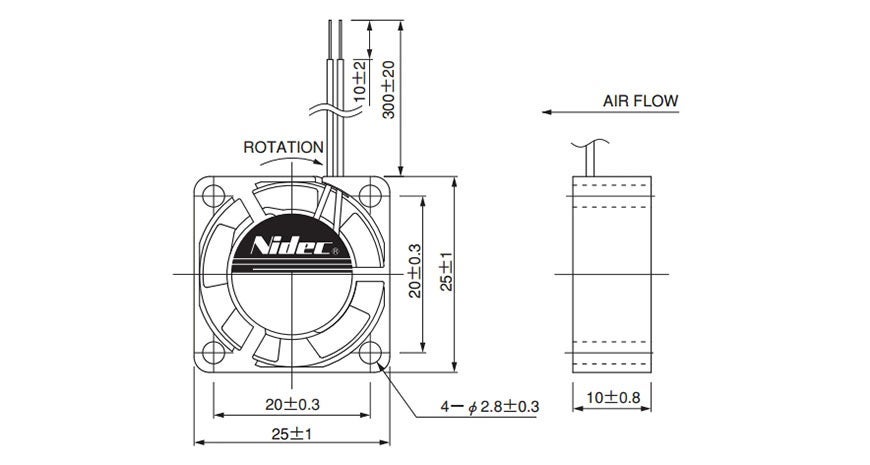

| Size | W25×H25 mm |
| Size | □0.984 |
| Length | 10 mm |
| Length | 0.394 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 20000 |
| Mass | 8～8 ℃ |
| Bearing | Nidec Bearing Revolution |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 4.5～5.5 V |
|---|---|
| Operating current | 0.11～0.11 A |
| Rated input | 0.55～0.55 W |
| Rated speed | 12000～12000 min-1 |
|---|---|
| Maximum air flow (m3/min) | 0.06～0.06 m3/min |
| Maximum air flow (CFM) | 2.15～2.15 CFM |
| Maximum static pressure(Pa) | 45～45 Pa |
| Maximum static pressure(inchH2O) | 0.18～0.18 inchH2O |
| Sound pressure(dB[A]) | 21～21 dB[A] |

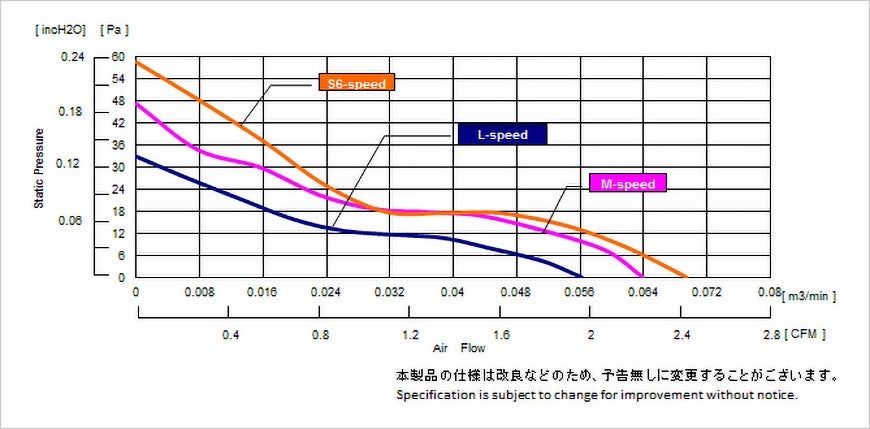

Characteristic chart
Characteristic chart
