Small-size and precision motors｜Brushless DC motors｜Motor
42F
companies handling the product：Nidec Corporation
DC motors for Ovens
By adjusting the PWM duty ratio of 0-100%, the rotation speed of the motor can be controlled, and the rotation direction of the motor can also be controlled to improve the cooking quality. In addition, since the height of the motor is lower than the height of the AC motor, it is very helpful to expand the internal space of the oven. If necessary, please contact us for more information.
- characteristics:
- RoHs support
- Contact information for product inquiry
- Contact Us
Product data
Basic information
| sort by power source type | DC |
|---|---|
| Size | φ98 mm |
| Size | Φ3.858 inch |
| Length | 30.3 mm |
| Length | 1.192 inch |
| Operation temperature | -10 ～ 70 ℃ |
| Lifespan | 30000H（40℃） |
| Mass | 218 g |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| Rated voltage | 21.6～26.4 V |
|---|---|
| Operating current |
| RPM | |
|---|---|
| Sound pressure |

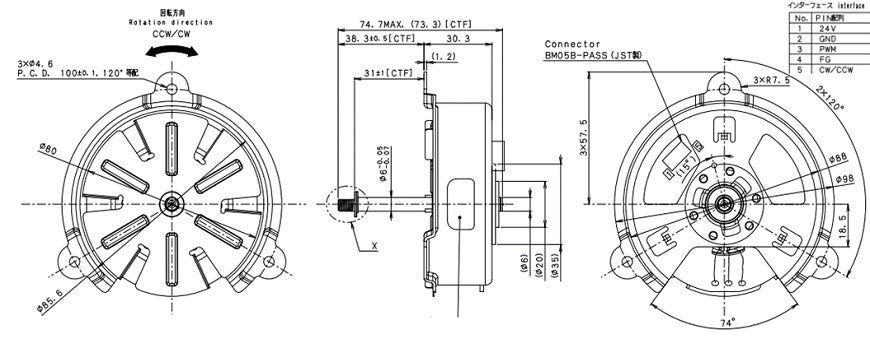

Drawing

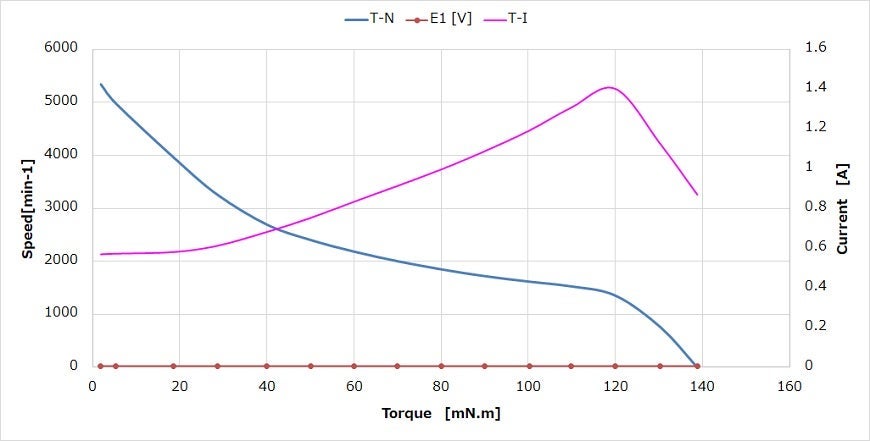

Characteristic chart
