25H Series

companies handling the product：Nidec Corporation

The brushless motor ensures long life and high efficiency.

Brushless DC motors do not require commutators and brushes, which are the disadvantages of brush motors. Brushless DC motors are an energy-efficient direct-current drive with long life, noise levels, quietness, and high efficiency. Because the rotor is on the outside, this has high drive torque, and excels at low-speed applications.Extensive customization in accordance with usage application, required pricing and quantities is possible. This includes inclusion of mounting plates, use of neodymium, and sleeve bearings.

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,REACH support,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ42 mm
Size	Φ1.653 inch
Length	58 mm
Length	2.283 inch
Operation temperature	-10～50 ℃
Number of poles	8
Companies handling the product	NIDEC CORPORATION

Input
Rated voltage	24 V22.8～25.2 V
Operating current	～2 A
Rated input	36 W

Output
Output	30.16 W
Torque	90 mN・m～90　mN・m
RPM	3200 min-1
No-load rpm	45004050～4950 min-1

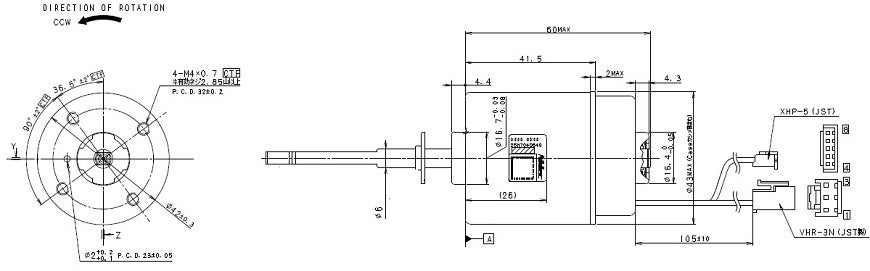

Drawing

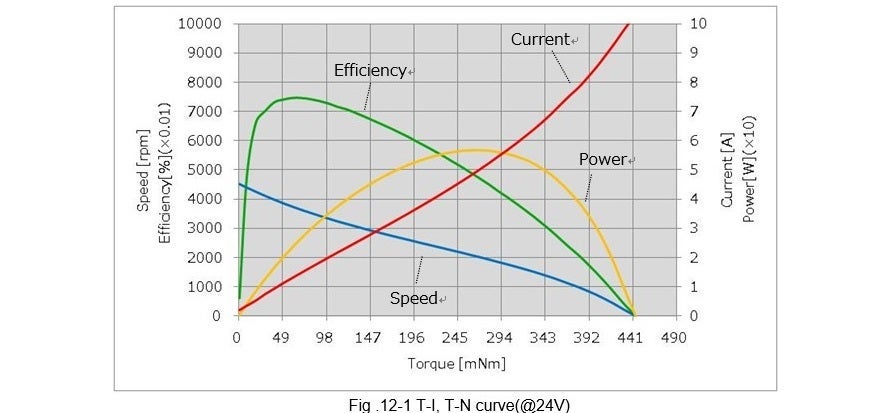

Characteristic chart
