24M Series

companies handling the product：Nidec Corporation

Optimal Blushless Motor of Low Drive Voltage for replacing the small Blushed Motor

Blushless DC Motor is of long life, good noise resistance, quiet, excellent in efficiency and energy-saving, without the commutator and blush that are required for Blushed Motor. Simple dust-proof with a Φ32 cover, this kind of motor is optimal for replacing the small blushed motors that are applied in those fields asking for long life and higher speed, and for replacing the conventional blushed AC motors applied in low power, small products such as desktop accessories, bringing out better efficiency and quietness. Its drive voltage is 3.8V~. enabling its application in the battery-driven, small portable products.

characteristics:: Small, Driven by Low Voltage, Low Noise, Low Vibration, Energy-saving, Long life, REACH and RoHs compliant

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

Sort by power source type	DC
Size	φ32 mm
Length	24.5 mm
Operation temperature	0～40 ℃
Mass	87 g
Number of poles	12
Companies handling the product	Nidec Corporation

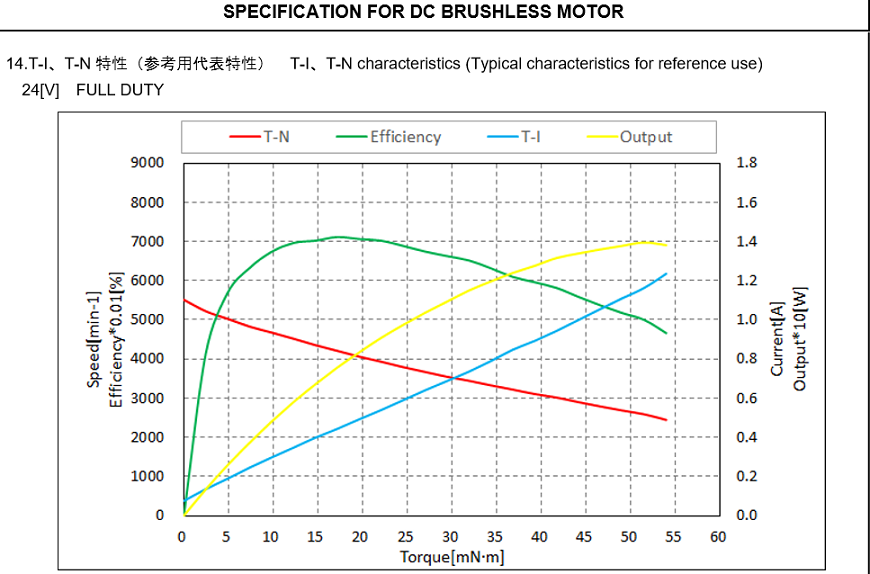

Input
Operating voltage	12 V3.7~28 V
Operating current	~1.1 A

Output
output	7.5 W
torque	20 mN・m
Rpm	3500 min-1
No-load rpm	~ 5500 min-1

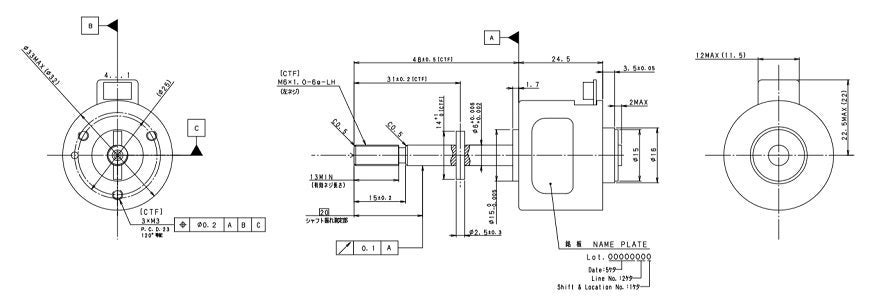

Drawing

Instantaneous maximum allowable rpm
