CMC_24H series

companies handling the product：Nidec Corporation

Provides long life and high efficiency.

This can be swapped in for the brush and stepping motors currently used in home electronics, automotive equipment, office equipment, and other fields, and fully solves issues with electromagnetic noise, short service life, and low energy efficiency because of high vibration noise, all disadvantages of brush motors, with the result thathigh functionality has been achieved at low cost.

characteristics:: Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ42
Length	34 mm～
Operation temperature	0～50 ℃
Mass	110～110 g
Companies handling the product	Nidec Corporation

Input
Operating voltage	24 V22.8~25.2 V
Operating current	~0.7 A

Output
output	~11 W
torque	~25 mN・m
Stall torque	70~ mN・m
Rpm	4200 min-13800~4600 min-1
No-load rpm	5800 min-15200~6400 min-1
Momentary maximum torque	70~ mN・m
Instantaneous maximum allowable rpm	5800 min-15800~5800 min-1

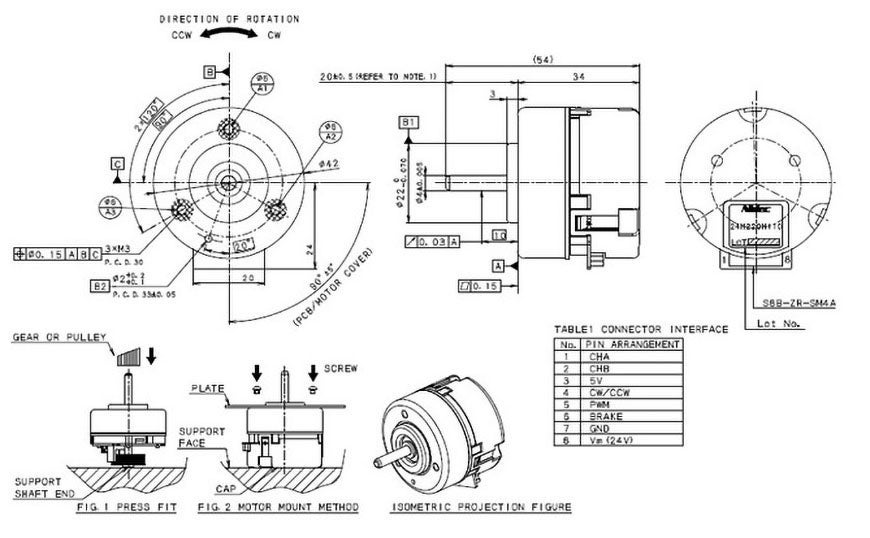

Drawing

Instantaneous maximum allowable rpm
