Small-size and precision motors|Brushless DC motors|Motor

CMC_24H series

companies handling the product:Nidec Corporation

Provides long life and high efficiency.

This can be swapped in for the brush and stepping motors currently used in home electronics, automotive equipment, office equipment, and other fields, and fully solves issues with electromagnetic noise, short service life, and low energy efficiency because of high vibration noise, all disadvantages of brush motors, with the result thathigh functionality has been achieved at low cost.

characteristics:
Low noise,Low vibration,Energy saving,Long life,Stability,Enviromental performance,RoHs support
Contact information for product inquiry
Contact Us

Product data

Basic information

sort by power source type DC
Size φ42
Length 34 mm~
Operation temperature 0~50 ℃
Mass 110~110 g
Companies handling the product Nidec Corporation
Input
Operating voltage 12 V11.4~12.6 V
Operating current ~0.9 A
Output
output ~7 W
torque ~25 mN・m
Stall torque 50~ mN・m
Rpm 2850 min-12550~3150 min-1
No-load rpm 3900 min-13500~4300 min-1
Momentary maximum torque 50~ mN・m
Instantaneous maximum allowable rpm 3900 min-13900~3900 min-1

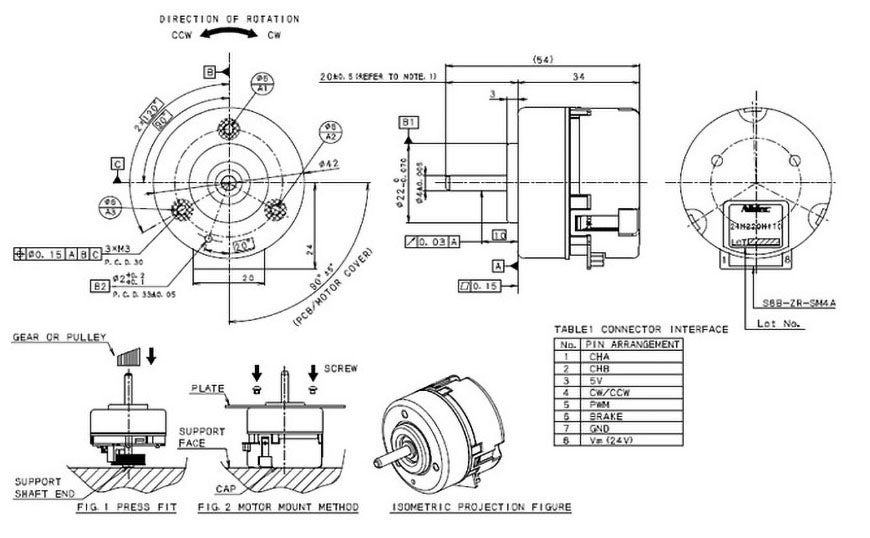

Drawing
