20M Series

companies handling the product：Nidec Corporation

Optimal Blushless Motor of Low Drive Voltage for replacing the small Blushed Motor

Blushless DC Motor is of long life, good noise resistance, quiet, excellent in efficiency and energy-saving, without the commutator and blush that are required for Blushed Motor. Simple dust-proof with a Φ24 cover, this kind of motor is optimal for replacing the small blushed motors that are applied in those fields asking for long life and higher speed. Its drive voltage is 5V~. enabling its application in the battery-driven, small portable products.

characteristics:: Small, Driven by Low Voltage, Low Noise, Low Vibration, Energy-saving, Long life, REACH and RoHs compliant

Contact information for product inquiry: Contact Us

Product data

Product data

Basic information

sort by power source type	DC
Size	φ24.4 mm
Length	12.2 mm
Operation temperature	0～45 ℃
Mass	23 g
Number of poles	12
Companies handling the product	Nidec Corporation

Input
Operating voltage	12 V5~18 V
Operating current	~0.5 A

Output
output	4 W
torque	5 mN・m
Rpm	6300 min-1
No-load rpm	~ 8500 min-1

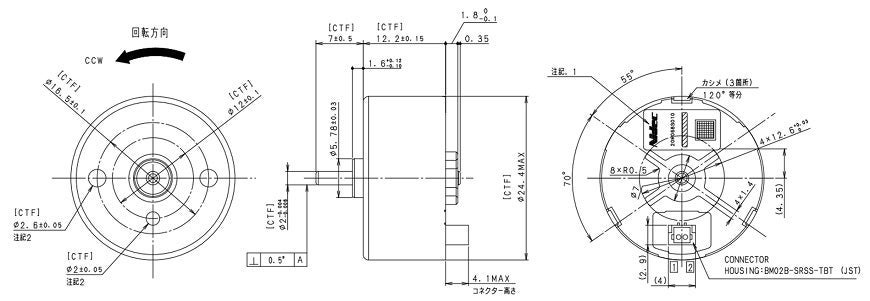

Drawing

Instantaneous maximum allowable rpm
