Cylindrical bore internal surface inspection system TPI Series

companies handling the product:NIDEC POWERTRAIN SYSTEMS CORPORATION

Bore inspection (auto-inspection of porosity, gouge, burr and scratch )

Cylindrical bore internal surface inspection system is a machine that is designed to inspect porosity, gouge, separation, burr and chip on the fabricated bore surface of die-cast product. It has non-contact inspection system and examines whole area of cylindrical bore internal surface, and records the defect postition. It does not give any scratches on the products when inspecting and helps to improve quality and productivity.

Contact information for product inquiry
Contact Us

Product data

Basic information

Bore diameter Φ6-60mm
Bore depth Within 150mm
Resolution Φ0.2mm
Scan speed 15mm/sec

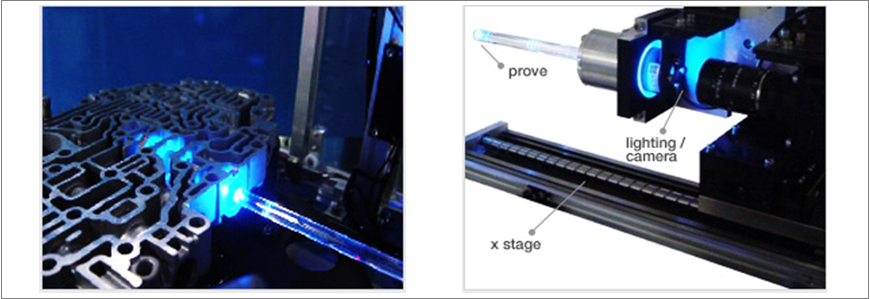

Measurement image

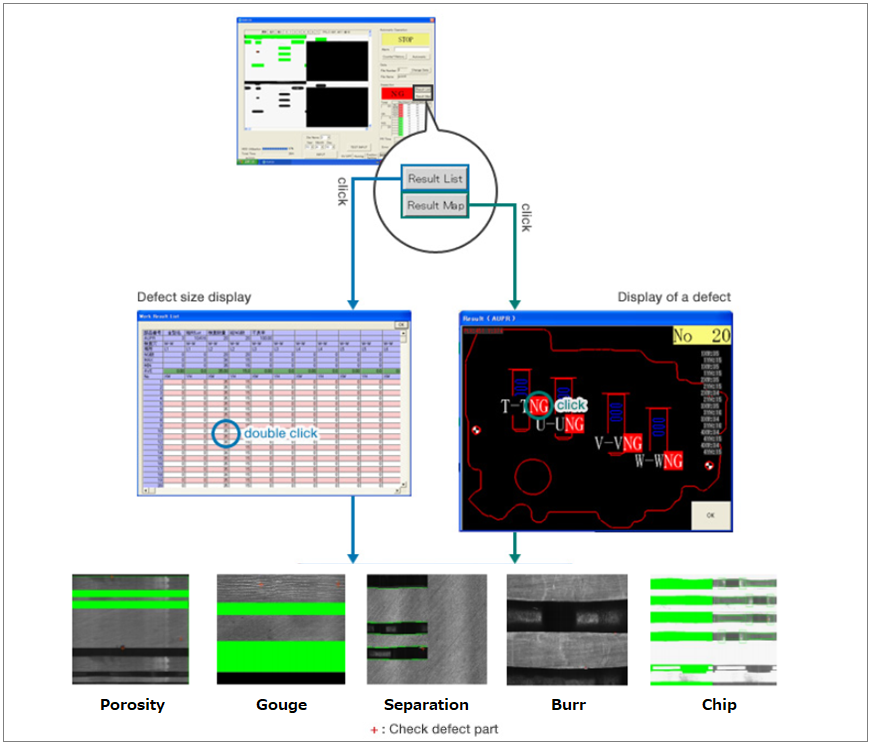

Result display screen
