Units and modules|Clothes washer & dryer units|Motor drive units Drain valve drive unit

NTCT

NIDEC INSTRUMENTS CORPORATION

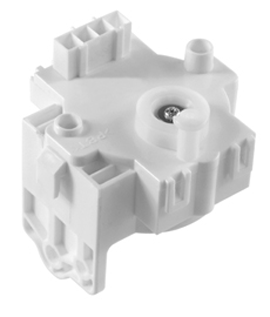

Drain valve drive motor for fully automatic and drum-type washing machines.

characteristics:
AC driving supply(AC100V, AC220-240V, 50/60Hz) The type of load holding with non-energization. One direct rotation by one way clutch.
Contact information for product inquiry
Contact Us

Product data

Basic information

Motor driving parts「Rated Voltage」 AC100V(50/60Hz), AC220-240V(50/60Hz)
Motor driving parts「Operating voltage」 AC85~115V(AC100V type), AC187~276V(AC220~240V type 50Hz), AC204~246V(AC220~240V type 60Hz)
Motor driving parts「Current input」 44±5㎃(AC100V/50Hz), 41±5㎃(AC100V/60Hz), 19±5㎃(AC220V), 22±5㎃(AC240V)
Output parts「Driving」 Revolving lever methot
Output parts「Tencil force」 25N
Output parts「Operatingtime」 5.3~7.0s(50Hz), 4.5~6.0s(60Hz)
Output「Operating stroke」 27.2㎜~29.5㎜
Operating tempuratue -5℃~40℃
Handling Company NIDEC INSTRUMENTS CORPORATION
