A5 system
Company: Nidec OKK Corporation
For more precision and quality five-axis machining
For a vertical machining center's table five-axis machine, the user can use a touch sensor to measure and correct a geometric error easily (automatically). This function enables the user to perform the five-axis dividing operation with high accuracy, and the simultaneous five-axis machining with high quality.
- ■What is A5 system?
- A system that analyzes the conditions of the axis to adjust mechanical accuracy in an area.
- Inquiries about this product
- Contact information for inquiries:
The product's features

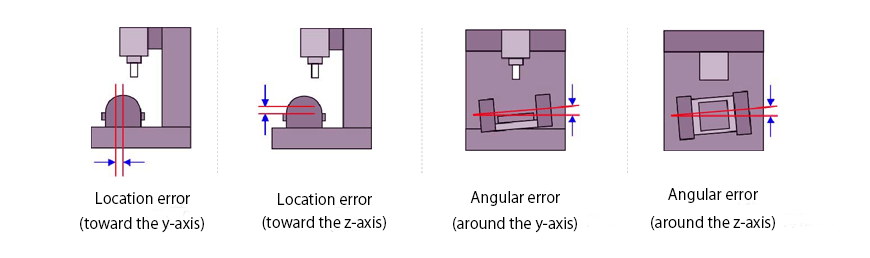

In five-axis machining, geometric errors in a rotating axis (the tilt and position gap of the rotating axis) affect machining accuracy greatly.

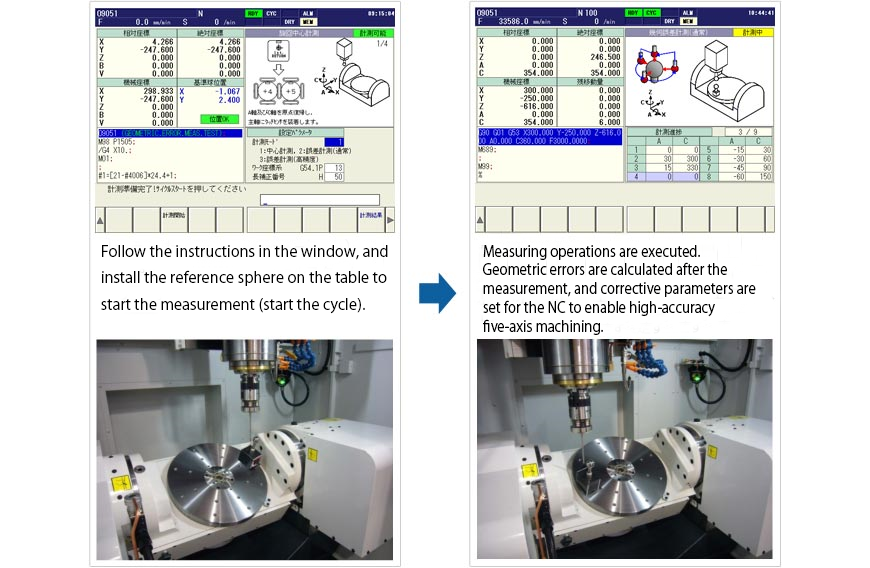

This function uses a reference sphere installed on a table, and a touch sensor mounted on the spindle to calculate the rotating axis's central coordinate and geometric error in a simple operation. By setting the calculated geometric error as a corrective parameter, the user can perform high-accuracy five-axis machining.
