Soft Scale Cube
Company: Nidec OKK Corporation
This function corrects environmental temperature-caused displacement of machined points on a real-time basis.
This function uses temperature change information from the sensor installed in a machine, to estimate the deformation of a cube of a airframe structure, and correct machined points' displacement on a real-time basis.
- Inquiries about this product
- Contact information for inquiries:
The product's features
■Environmental thermal displacement correction

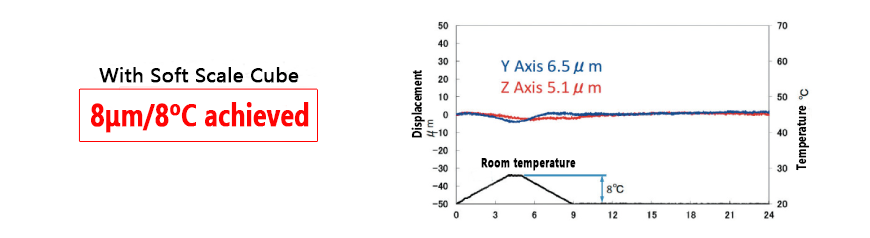

(VM53R's measures value)
■ Verifying the machining of Cube correction

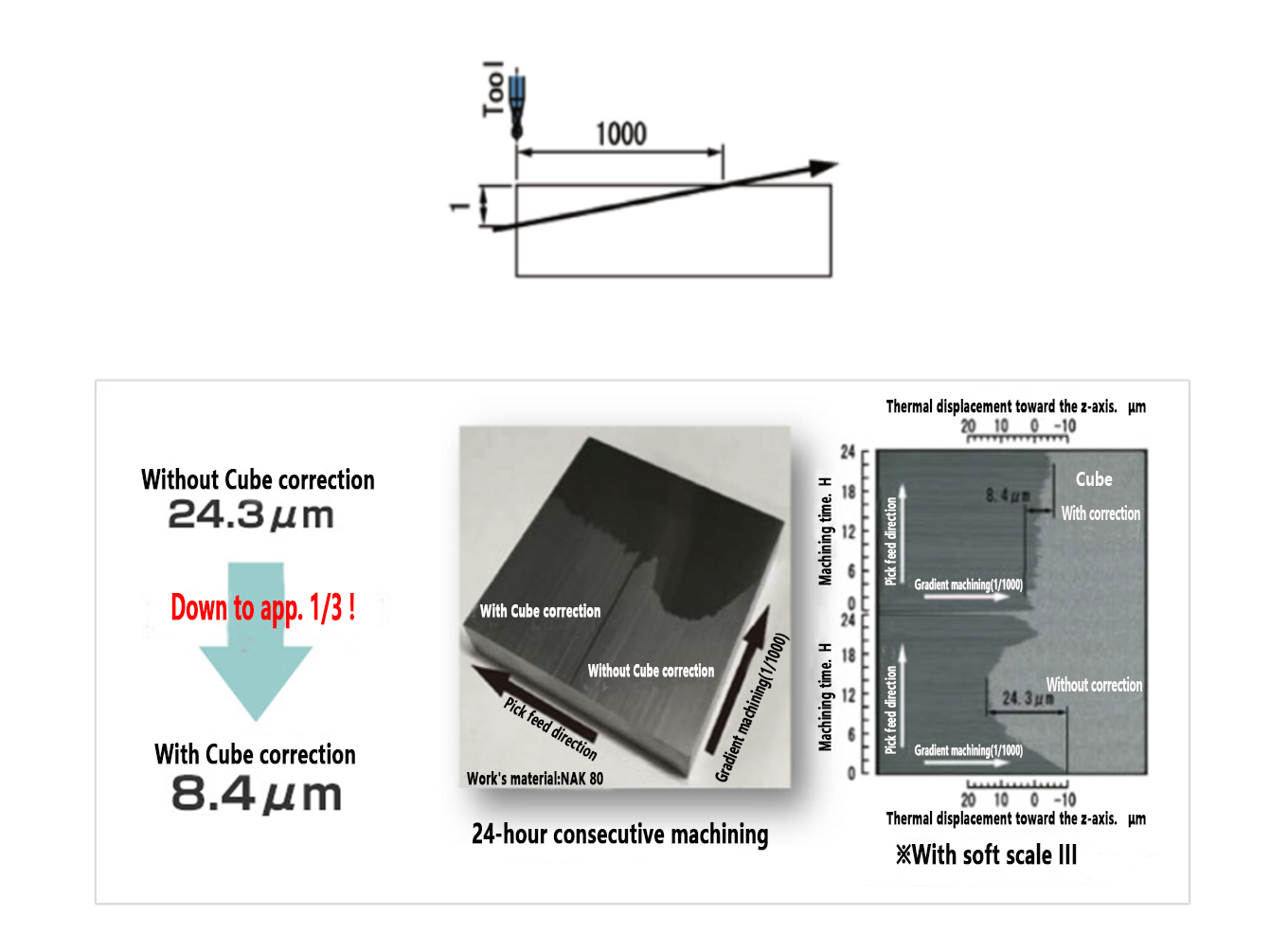

A machining test is conducted for the errors in the Z-axis's direction to appear 1,000 times larger in the y-axis's direction
(1mm/m grade machining on a YZ flat surface).）
■ Main specifications
Supported NC models: N800, F30i-B Series
Used as standard in VM43RII, VM53RII, VM76RII, and VB53α
