Precision position detectors MP SCALE|Rotary angle detector|Incremental type of rotary angle detector

Incremental Type MPI Series

The handling companies : Nidec Machine Tool Corporation

Contact information for product inquiry
Contact Us

Features

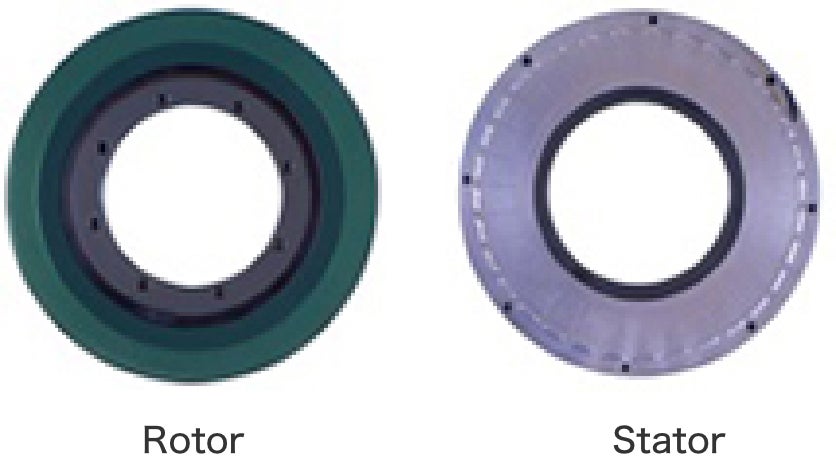

MPIseries rotor stator
高精度
2 seconds / MPI-1272B
薄い
Thickness 14mm / MPI-536A
CNC
Connectable with various NC's(FANUC, Mitsubishi CNC, Mitsubishi Servo)
abs
Absolute detection is possible combining with battery backuped encoder on feed motor. (In case of FANUC and Mitsubishi CNC)

Application

For high accuracy rotary axis and tilt axis of rotary table.

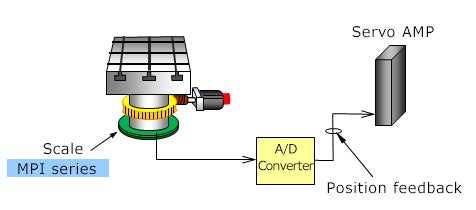

Application of Rotary table
Application of Rotary table

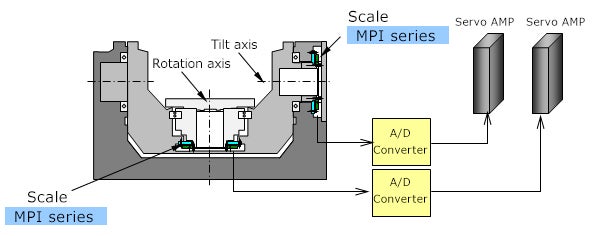

Application of 5 axis Rotary table
Application of 5 axis Rotary table

Specifications

Scale
Scale type Accuracy ※1 Weight ※2 No. of poles ※3 Graduation pitch
MPI-536A 4sec. 1.0kg 360 2deg
MPI-736B 3sec. 2.0kg
MPI-1072B 2.5sec. 3.9kg 720 1deg
MPI-1272B 2sec. 6.5kg
Applicable A/D converter
Scale ※3 NC Type Output signal Resolution Max. speed
360 poles 2 deg pitch Scale
MPI-536A
MPI-736B
FANUC ADB-K60F Serial I/F 0.10×10-3deg 10,000min-1
Mitsubishi CNC ADB-K60M 0.05×10-3deg
Various equipment ADB-20J10 Digital A, B, and Z phase output 0.10×10-3deg 222min-1
720 poles 1 deg pitch Scale
MPI-1072B
MPI-1272B
FANUC ADB-K60F Serial I/F 0.05×10-3deg 5,000min-1
Mitsubishi CNC ADB-K60M 0.05×10-3deg
Various equipment ADB-20J10 Digital A, B, and Z phase output 0.05×10-3deg 111min-1

※1:Positioning error shows peak-to-peak within 1 rotation. Interpolation error (error within 1 pitch of Scale) is not included.

※2:Wiring is not included in weight.

※3:The number of poles is the number of patterns on the Scale.

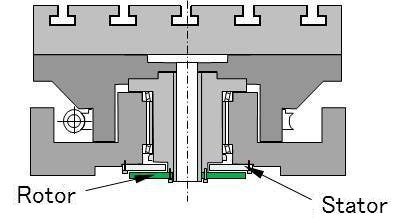

Mounting Example

Mounting Example

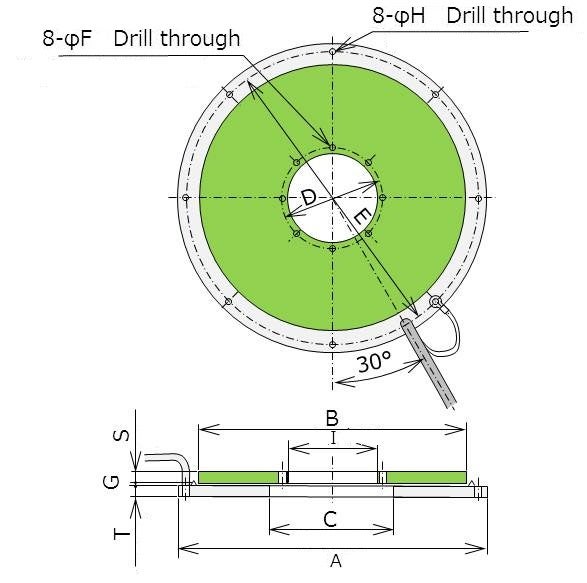

Dimensions

Dimensions

Unit: mm

Type A B C D E F G
MPI-536A 127 0
-0.1
104.3 0
-0.1
40.4 +0.1
0
33.7±0.1 120.1±0.1 φ3.6 Drill hole 0.15 +0.1
-0.03
MPI-736B 177.8 0
-0.1
146.05 0
-0.1
76.6 +0.1
0
67.2±0.1 168.2±0.1 φ5.5 Drill hole
MPI-1072B 251.7 0
-0.1
209.3 0
-0.1
120 +0.1
0
104.0±0.1 240.0±0.1 φ7.0 Drill hole 0.25±0.13
MPI-1272B 302 0
-0.1
251.2 0
-0.1
150 +0.1
0
134.0±0.1 287.0±0.1
Type H I S T Attached
cable length
Existence of
connector
mounted
MPI-536A φ3.6 Drill hole 27.1 +0.1
0
7.01±0.07 6.99±0.07 1.5m No
MPI-736B φ5.5 Drill hole 58 +0.1
0
8.01±0.07 7.99±0.07
MPI-1072B φ7.0 Drill hole 90 +0.1
0
8.01±0.07 7.99±0.07
MPI-1272B 120 +0.1
0
9.41±0.07 9.39±0.07

At designing mounting, please require and refer to the scale mounting drawing.
