Precision position detectors MP SCALE|Rotary angle detector|Absolute type of rotary angle detector with built-in A/C converter

Absolute type MPZA series

The handling companies : Nidec Machine Tool Corporation

Contact information for product inquiry
Contact Us

Features

MPZA Series Rotor Stator
small space
With built-in A/D converter, mounting space is unnecessary.
ECO
5V power supply of NC equipment is used.
abs
Absolute system without battery backup
small mounting space
Thickness 20mm
CNC
Connectable with various NC's(FANUC, Mitsubishi CNC, SIEMENS)
high speed
10,000min-1

Application

Highly suitable for absolute feedback detector of direct drive motor and precise rotation table.

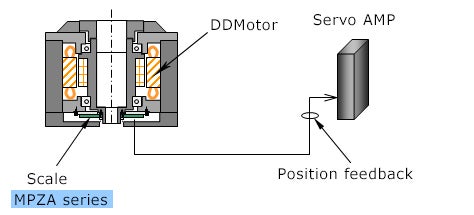

Application of DD motor
Application of DD motor

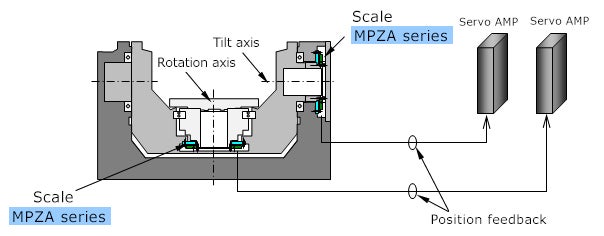

Application of 5 axis Rotary table
Application of 5 axis Rotary table

Specification

The specifications of built-in A/D converter Absolute Value Rotary MP SCALE (MPZA series) are shown as followings.

Scale type Accuracy
※1
Weight
※2
Number of poles
※3
Graduation pitch Output signal Resolution Max. speed
MPZA-2024A-23bit-* 5sec 1.2kg 240 3deg Serial I/F 223/rev
(0.043×10-3deg)
10,000min-1
MPZA-10036A-23bit-* 4sec 2.7kg 360 2deg

Notes) * shows connection specification.M:Mitsubishi CNC, F:FANUC, S:SSI(SIEMENS)

※1:Positioning error shows peak-to-peak within 1 rotation. Interpolation error (error within 1 pitch of Scale) is not included.

※2:Wiring is not included in weight.

※3:The number of poles is the number of patterns on the Scale.

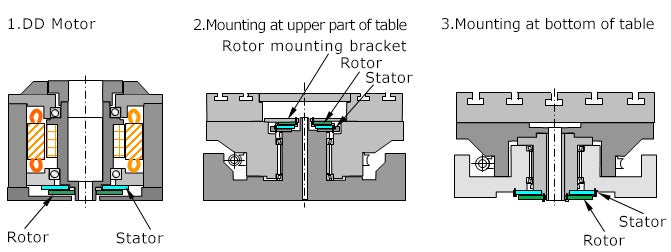

Mounting Example

Mounting Example

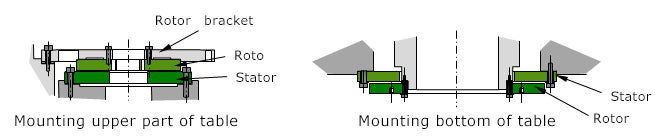

Mounting Example

Dimensions

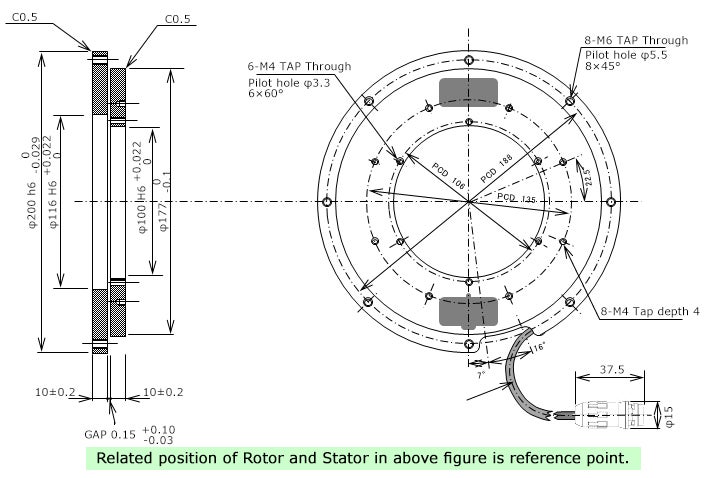

Dimensions of MPZA-2024A
Dimensions of MPZA-2024A

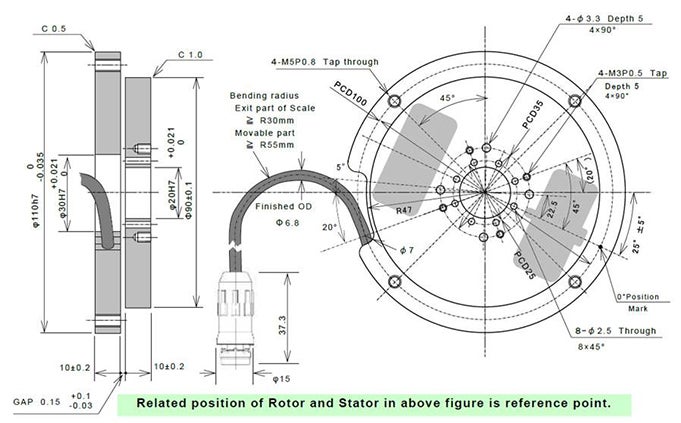

Dimensions of MPZA-10036A
Dimensions of MPZA-10036A
