Precision position detectors MP SCALE|Linear position detector|Absolute type of linear position detector
Absolute type MPLW series
The handling companies : Nidec Machine Tool Corporation
- Contact information for product inquiry
- Contact Us
Feature
![Absolute](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/light_icon.jpg)
Can be installed in the optimum position of the machine
Space saving with built-in preamplifier
![High accuracy](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/high-precision_icon.jpg)
![CNC](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/air-purge_icon.jpg)
![Since same heat expansion ratio with machine, strong to thermal expansion.](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/thermal-displacement_icon.jpg)
![High resolution](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/long-term-stable_icon.jpg)
![No Air purge](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/abs_icon.jpg)
No need to return to origin after power ON
![Stabel for a long time](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/cnc_icon.jpg)
Mitsubishi CNC
FANUC
SSI (SEIMENS)
Biss-C (general NC)
・A phase・B phase・Z phase

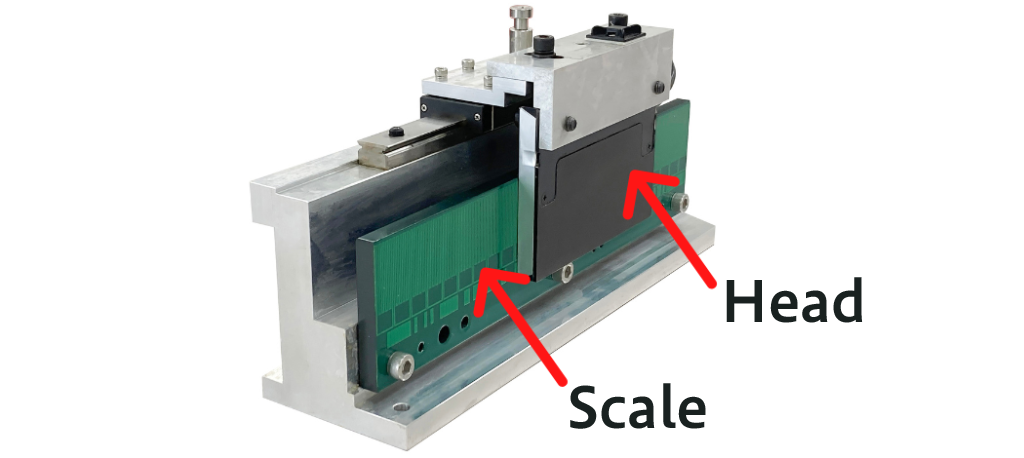

![](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/EN_mplw_02.jpg)
Use
Position detection for linear axes of general machines

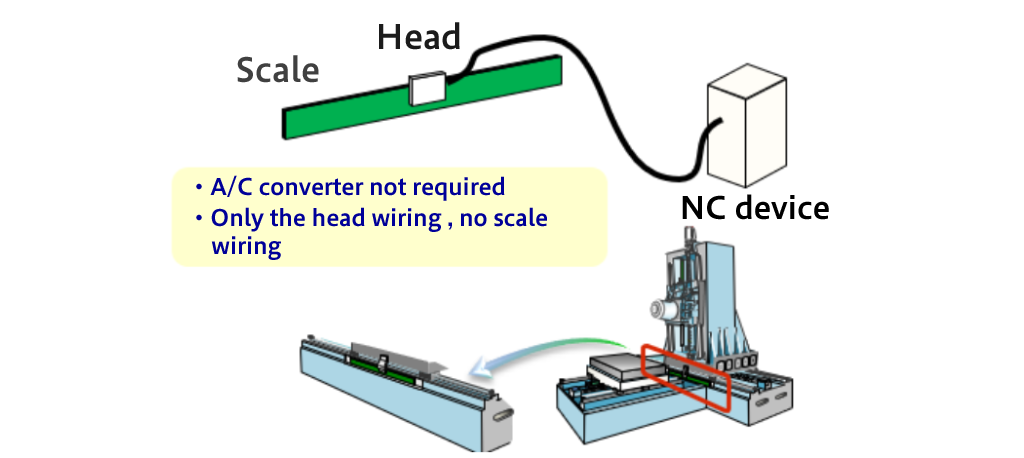

![](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/EN_mplw_01.jpg)
Product lineup
Model | scale Length L |
stroke S. |
pitch accuracy |
Minimum resolution | Connection NC |
---|---|---|---|---|---|
MPLW-0160A | 261 | 160 | 2.5 μm | 0.01 μm | ・Serial connection Mitsubishi CNC FANUC SSI (SEIMENS) Biss-C (general NC) ・A phase・B phase・Z phase |
MPLW-0260A | 361 | 260 | 2.8 µm | ||
MPLW-0360A | 461 | 360 | 3.2 µm | ||
MPLW-0460A | 561 | 460 | 3.5 μm | ||
MPLW-0560A | 661 | 560 | 3.8 µm | ||
MPLW-0660A | 761 | 660 | 4.2 µm | ||
MPLW-0760A | 861 | 760 | 4.5 μm | ||
MPLW-0860A | 961 | 860 | 4.8 μm | ||
MPLW-0960A | 1061 | 960 | 5.3 μm | ||
MPLW-1160A | 1261 | 1160 | 6.5 μm | ||
MPLW-1360A | 1461 | 1360 | 7.5 μm | ||
MPLW-HD00 head |
|||||
Main Specifications
![](/-/media/www-nidec-com/machine-tool/products/B703/M101/S103/NMTJ-mplw_series/img/mplw_03.jpg)
