Combined Machining CNC Lathe
TCY-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)
TCY-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle)
|
Lathe Combined Machining CNC Lathe TCY-160 Chuck Size 6+6in, Max.Turning Dia. 220mm, Max. Turning Length 291, 491mm, Bar Capacity 42mm
|
|
Lathe Combined Machining CNC Lathe TCY-200 Chuck Size 8+6in, Max.Turning Dia. 220mm, Max. Turning Length 254, 454mm, Bar Capacity 51mm（Left Spindle）
|
TM-SeriesMulti-Tasking Machine (Opposed Twin-Spindle, Twin-Turret)
Multi-Tasking Machine with upper/lower Y-axes turret with various automation proposals.
Integrates Processes by One Machine

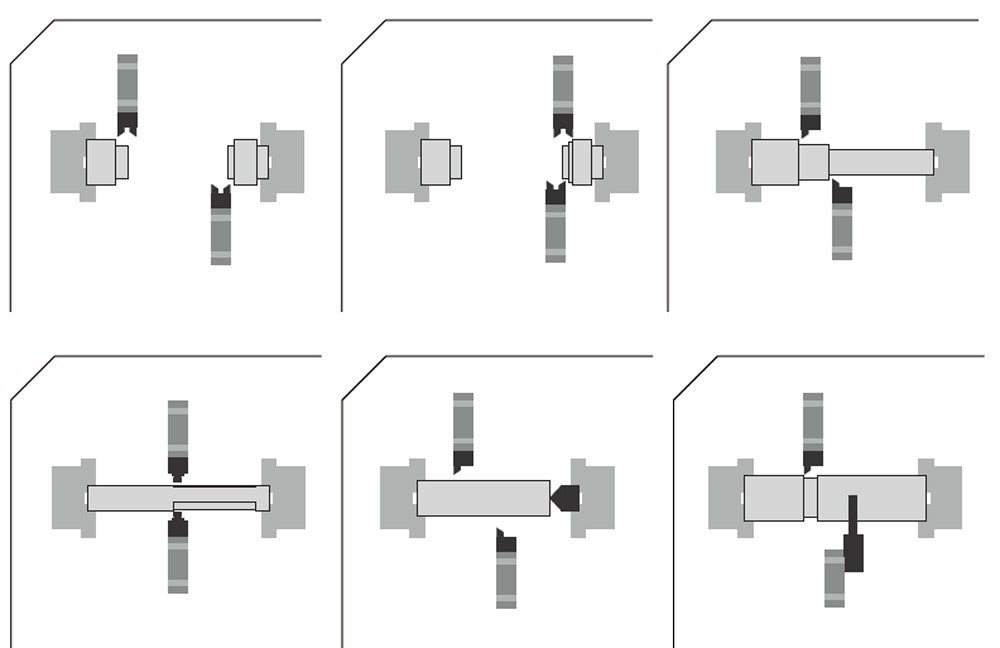

With a multi-tasking machine, all workpieces can be covered with a wide variety of machining variations.

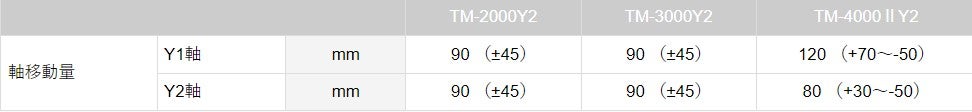

Upper/Lower Y-Axis
Corresponding to various workpieces with its wide machining range.
TM-Series
|
Lathe Combined Machining CNC Lathe TM-2000Y2 Chuck Size 6+6in, Max.Turning Dia. 215mm, Max. Turning Length 640mm, Bar Capacity 51mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TM-3000Y2 Chuck Size 8+6in, Max.Turning Dia. 215mm, Max. Turning Length 620mm Bar Capacity 85mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TM-4000ⅡY2 Chuck Size 8+8in, Max.Turning Dia. 215mm, Max. Turning Length 800mm, Bar Capacity 82mm（Left Spindle）
|
TS-SeriesCombined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)
Combined machining CNC lathe developing machining area
Features of TS series
TS corresponds to integrally-shaped workpieces involving turning and rotating-tool cutting processes.
This CNC lathe (combined machining CNC lathe) integrates processes highly efficiently by its strong milling and Y-axis control.
In the automation support system, TAKISAWA's original gantry loader improves productivity.
Feature
The highly rigid 30° slant bed
The highly rigid rectangular slideways. (X/Y/Z-axis)
High Power Built-in Motor
LONGER 4.7” Y-axis
Stronger Milling Motor 7.5kW, 12-Station Milling Turret
12-station turret (option: 10/15/20-station) available

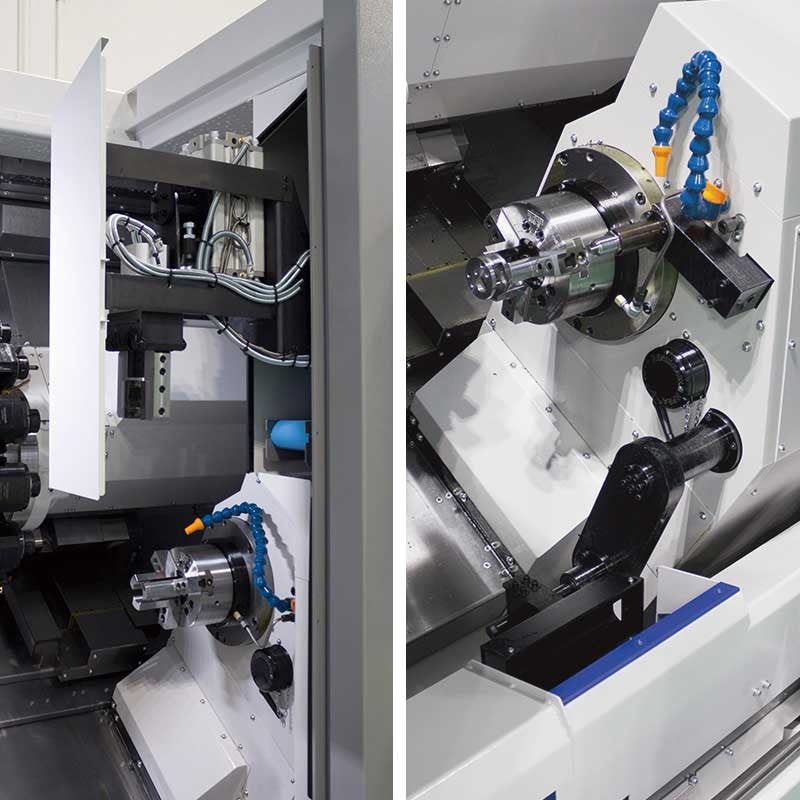

In-machine Automation (Special Specification)

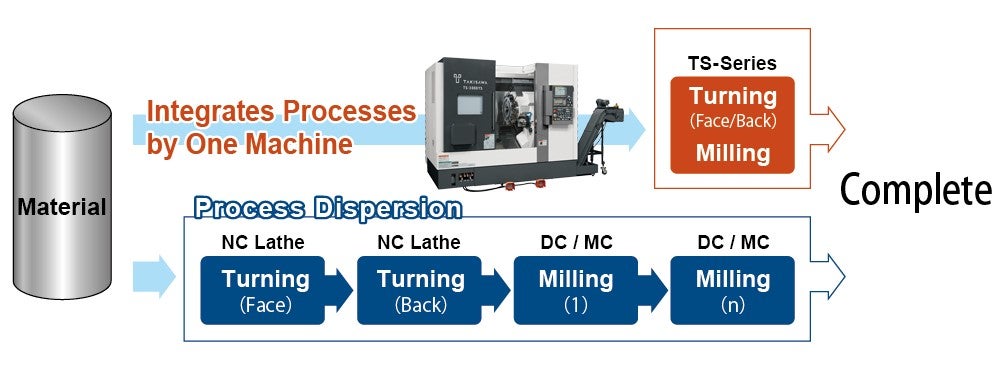

Integrates Processes by One Machine
Turning, milling, and front and back machining processes can be integrated into one machine.

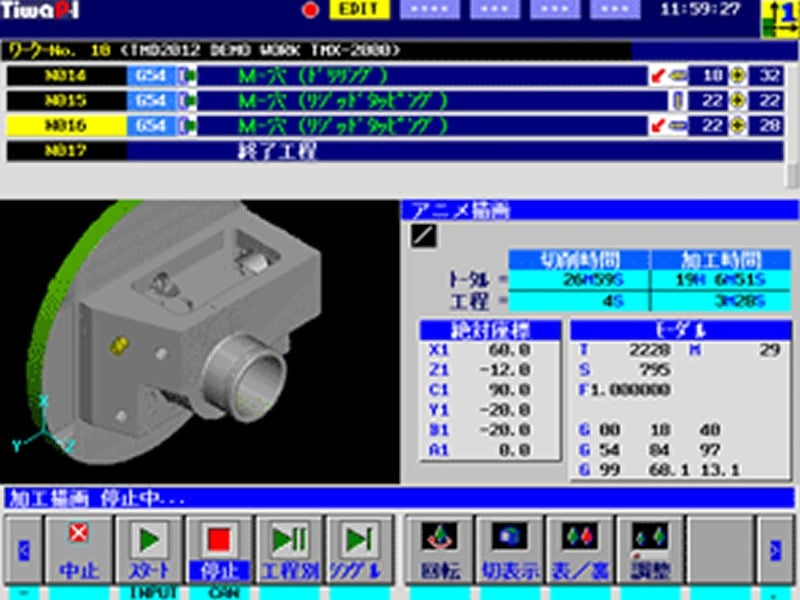

Takisawa Original Software Tiwap-1
"TiwaP-1" is an interactive programming system fully supporting creation, simulation, and execution of machining programs to reduce operator' labor.
"Input" by the interactive system is easy for the operator to create programs without knowledge of G codes. "Check" of programs can be done by simulating the cutting results with 3D animation and tool path drawing. In "Operation", the machining spindle and the order of process types are automatically recognized to optimally execute spindle control and C-axis zero return.
TS-Series
|
Lathe Combined Machining CNC Lathe TS-2000 Chuck Size 6+6in, Max.Turning Dia. 370mm, Max. Turning Length 565mm, Bar Capacity 51mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-3000 Chuck Size 8+6in, Max.Turning Dia. 370mm, Max. Turning Length 550mm, Bar Capacity 67mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-4000 Chuck Size 10+6in, Max.Turning Dia. 370mm, Max. Turning Length 750mm, Bar Capacity 82mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-5000 Chuck Size 12+8in, Max.Turning Dia. 370mm, Max. Turning Length 1300mm, Bar Capacity 102mm, OP.82mm（Left Spindle）
|
TMM-Series High efficiency, Multi-Tasking Machine (Opposed Twin-Spindle, Twin-Saddle)
Higher operation rate and productivity by process integration and automation!
TMM series consists of Module-1 (turning & milling).
Both of them are process integration machines which can reduce setup processes.
Furthermore, automation with the TAKISAWA's original gantry loader will improve operation rate and productivity.
Integrates Processes by One Machine
With a multi-tasking machine, all workpieces can be covered with a wide variety of machining variations.
TMM-Series
|
Lathe Combined Machining CNC Lathe TMM-250M1Turret Type, 4-axes Multi-Tasking Machine Chuck Size 10+8in, Max.Turning Dia. 500mm（Tool Spindle）, Max. Turning Length 1300mm, Bar Capacity 76.2mm（Left Spindle）
|
Combined Machining CNC Lathe
10matches (1 - 10)
|
Lathe Combined Machining CNC Lathe TCY-160 Chuck Size 6+6in, Max.Turning Dia. 220mm, Max. Turning Length 291, 491mm, Bar Capacity 42mm
|
|
Lathe Combined Machining CNC Lathe TCY-200 Chuck Size 8+6in, Max.Turning Dia. 220mm, Max. Turning Length 254, 454mm, Bar Capacity 51mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-2000 Chuck Size 6+6in, Max.Turning Dia. 370mm, Max. Turning Length 565mm, Bar Capacity 51mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-3000 Chuck Size 8+6in, Max.Turning Dia. 370mm, Max. Turning Length 550mm, Bar Capacity 67mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-4000 Chuck Size 10+6in, Max.Turning Dia. 370mm, Max. Turning Length 750mm, Bar Capacity 82mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TS-5000 Chuck Size 12+8in, Max.Turning Dia. 370mm, Max. Turning Length 1300mm, Bar Capacity 102mm, OP.82mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TM-2000Y2 Chuck Size 6+6in, Max.Turning Dia. 215mm, Max. Turning Length 640mm, Bar Capacity 51mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TM-3000Y2 Chuck Size 8+6in, Max.Turning Dia. 215mm, Max. Turning Length 620mm Bar Capacity 85mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TM-4000ⅡY2 Chuck Size 8+8in, Max.Turning Dia. 215mm, Max. Turning Length 800mm, Bar Capacity 82mm（Left Spindle）
|
|
Lathe Combined Machining CNC Lathe TMM-250M1Turret Type, 4-axes Multi-Tasking Machine Chuck Size 10+8in, Max.Turning Dia. 500mm（Tool Spindle）, Max. Turning Length 1300mm, Bar Capacity 76.2mm（Left Spindle）
|
Compact combined machining lathe suitable for small parts machining with milling processes
Compact multipurpose lathe having high rigidity and highly reliable and precise construction is suitable for chuck work and shaft work by means of turning and milling.
Milling and Y-axis control realize highly efficient process integration.
In addition, automation (option) supports continuous automatic operation by TAKISAWA's original gantry loader and various peripheral equipment. Automation by bar feeder is also available.

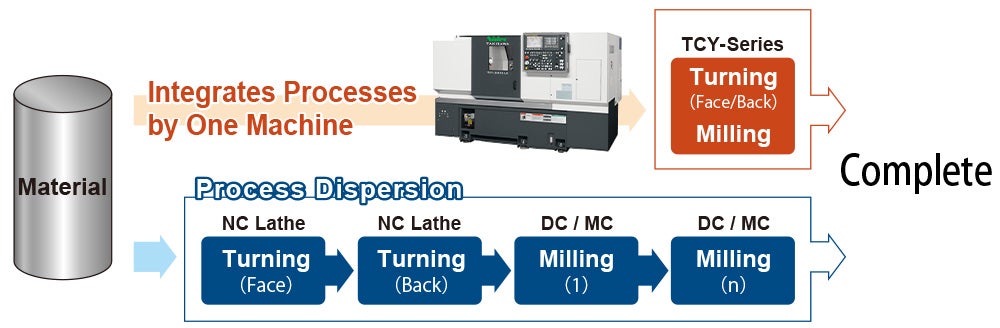

Integrates Processes by One Machine
Turning, milling, and front and back machining processes can be integrated into one machine.
