Lathe
CNC Lathe
TCC-SeriesCNC Lathe (1 Spindle / 1 Turret)
TCC-SeriesCNC Lathe (1 Spindle / 1 Turret)
|
Lathe CNC Lathe TCC-1100 Chuck Size 6in, Max.Turning Dia. 220mm, Max. Turning Length s171mm, Bar Capacity 42mm
|
|

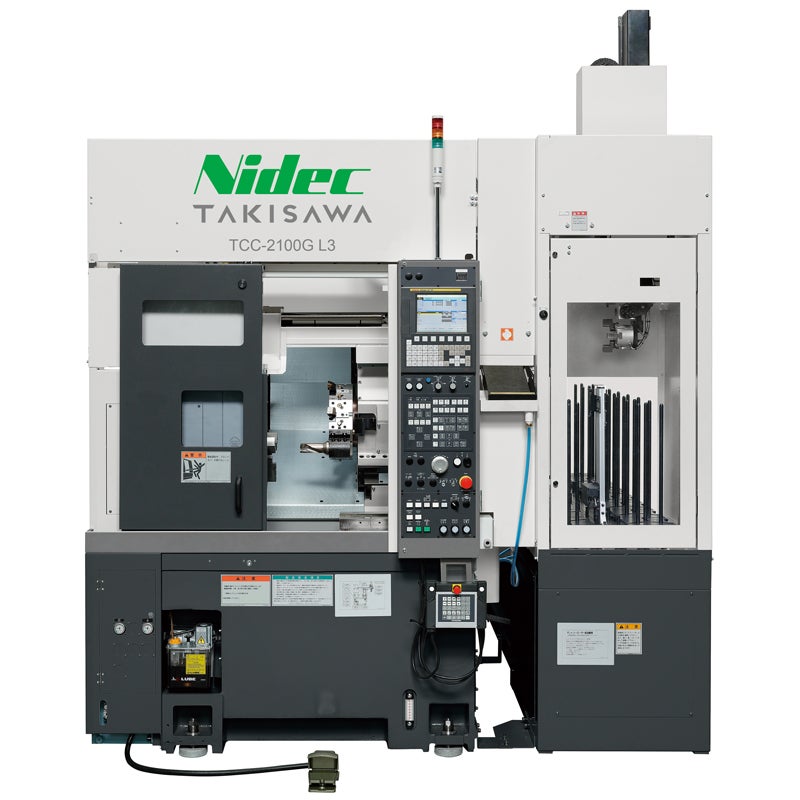

Lathe CNC Lathe TCC-2100 Chuck Size 8in, Max.Turning Dia. 350mm, Max. Turning Length 189, 289mm, Bar Capacity 51mm
|
TCN-SeriesCNC Lathe (1 Spindle / 1 Turret)
Realize the compact and space saving machine.
High productivity with high rigidity and strong cutting capability World standard machine representing 8" - 12" turning Supporting automation by high speed gantry loader and bar feeder system
Compact & space saving, but operability-oriented.
The machine is made thoroughly compact and space-saving, but the door opening is wide. It makes accessibility to the spindle excellent and tip change and setup change easy.
Box Shaped Bed & Box Slide Way
Box-shaped bed construction having very high rigidity resistive to thermal deformation. All slideways use highly rigid and highly accurate rectangular slides.
Tank bed structure with a large capacity coolant tank. A low center of gravity provides more stability in machining.
High-Speed Gantry Loader System
We can propose automatic system configuration with high productivity according to workpieces.
TCN-Series CNC Lathe (1 Spindle / 1 Turret)
|
Lathe CNC Lathe TCN-2100V.EDITION Chuck Size 8in, Max.Turning Dia. 410mm, Max. Turning Length 300, 600mm, Bar Capacity 51mm
|
|
Lathe CNC Lathe TCN-2100 Chuck Size 8in, Max.Turning Dia. 410mm, Max. Turning Length 300, 600mm, Bar Capacity 51mm
|
|
Lathe CNC Lathe TCN-2600 Chuck Size 10in, Max.Turning Dia. 410mm, Max. Turning Length 250, 550mm, Bar Capacity 74, OP.90mm
|
|
Lathe CNC Lathe TCN-3500 Chuck Size 10, 12in, Max.Turning Dia. 430mm, Max. Turning Length 485, 985mm, Bar Capacity 80, OP.108mm
|
TC-SeriesHighly Rigid CNC Lathe (1 Spindle / 1 Turret)
Powerful cutting CNC lathe suitable for high accuracy production machining of medium or large sized and long workpieces.
Box Shaped Bed & Box Slide Way
Tough turret, tailstock, bed and saddle construction presents powerful and stable cutting.
TC-Series Highly Rigid CNC Lathe (1 Spindle / 1 Turret)
|
Lathe CNC Lathe TC-40 huck Size 12, 15in, Max.Turning Dia. 450mm, Max. Turning Length 1020, 2020, 3020mm, Bar Capacity 89mm
|
TF-SeriesShaft machine tool (1 spindle 2 turrets)
Significant reduction of cutting time ranging from flange machining to shaft machining
Highly Rigid Shaft Turning Lathe
This shaft turning 4-axis CNC lathe supports shaft workpieces having flange shapes with its maximum turning diameter of 260 mm and maximum turning length of 750 mm.
Upper and lower turrets
The upper and lower turrets achieve various approaches to the workpiece, significantly reducing cutting time.
TF-SeriesShaft machine tool (1 spindle 2 turrets)
|
Lathe CNC Lathe TF-2600 Chuck Size 8, 10in, Max.Turning Dia. 260mm, Max. Turning Length 750, 650mm, Bar Capacity 51, 80mm
|
CNC Lathe
8matches (1 - 8)
|
Lathe CNC Lathe TCC-1100 Chuck Size 6in, Max.Turning Dia. 220mm, Max. Turning Length s171mm, Bar Capacity 42mm
|
|
Lathe CNC Lathe TCC-2100 Chuck Size 8in, Max.Turning Dia. 350mm, Max. Turning Length 189, 289mm, Bar Capacity 51mm
|
|
Lathe CNC Lathe TCN-2100V.EDITION Chuck Size 8in, Max.Turning Dia. 410mm, Max. Turning Length 300, 600mm, Bar Capacity 51mm
|
|
Lathe CNC Lathe TCN-2100 Chuck Size 8in, Max.Turning Dia. 410mm, Max. Turning Length 300, 600mm, Bar Capacity 51mm
|
|
Lathe CNC Lathe TCN-2600 Chuck Size 10in, Max.Turning Dia. 410mm, Max. Turning Length 250, 550mm, Bar Capacity 74, OP.90mm
|
|
Lathe CNC Lathe TCN-3500 Chuck Size 10, 12in, Max.Turning Dia. 430mm, Max. Turning Length 485, 985mm, Bar Capacity 80, OP.108mm
|
|
Lathe CNC Lathe TC-40 huck Size 12, 15in, Max.Turning Dia. 450mm, Max. Turning Length 1020, 2020, 3020mm, Bar Capacity 89mm
|
|
Lathe CNC Lathe TF-2600 Chuck Size 8, 10in, Max.Turning Dia. 260mm, Max. Turning Length 750, 650mm, Bar Capacity 51, 80mm
|
2-axis CNC lathe achieving extreme high speed, high accuracy, and compactness

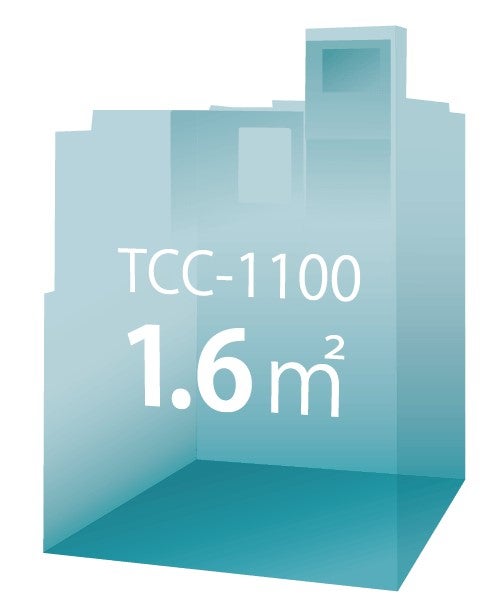

Increasing production in limited installation area!
Gantry Loader Supports Automatic Production!
Compact & space saving, but operability-oriented.
The machine is made thoroughly compact and space-saving, but the door opening is wide. It makes accessibility to the spindle excellent and tip change and setup change easy.
Box Shaped Bed & Box Slide Way
Box-shaped bed construction having very high rigidity resistive to thermal deformation. All slideways use highly rigid and highly accurate rectangular slides.
Tank bed structure with a large capacity coolant tank. A low center of gravity provides more stability in machining.
High-Speed Gantry Loader System
We can propose automatic system configuration with high productivity according to workpieces.
