Table Type Horizontal Boring Mills MAF-EⅡ Series
The companies handling the product：Nidec Machine Tool Corporation
- Contact information for product inquiry
- Contact Us
The MAF-EII series raises a level of production in a wide range of machining operations from high-speed/heavy- duty cutting of large workpieces to die/precision parts manufacturing.
MAF-EⅡseries
MAF130EⅡ
- Boring spindle diameter (mm)
φ130 - Table Working area (mm)
1,800×2,000
2,000×2,200
2,000×2,500
Indexing
0.0001 degree indexing (opt. cutting feed B axis)
Loading capacity (kg)
20,000
Features
The MAF-EII series are designed to machine larger size workpieces with higher accuracy.
The best-in-class spindle performance
It supports various types of workpiece machining such as high-speed machining with a small-diameter drill, low-speed high-output machining with a large-diameter milling tool, and high-torque machining with large-diameter boring.

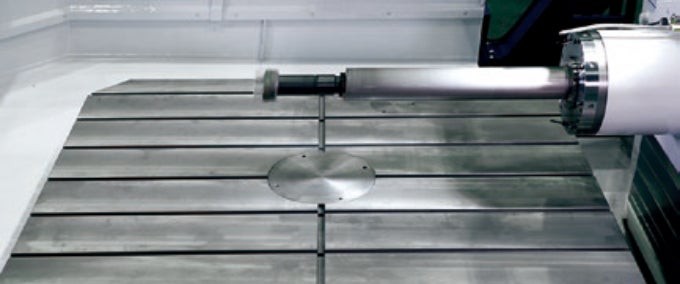

The extension of the boring spindle is 800 mm, the best in its class
Good accessibility to workpieces, ideal for deep hole boring
Quick axis movement can shorten non-cutting time
Rapid traverse rate: X, Y, Z-axis: 15 m/min, W-axis: 10 m/min, B-axis: 500 deg./min
Specifications
| Item / Model | MAF130EⅡ | ||||
|---|---|---|---|---|---|
| Boring spindle diameter (mm) | φ130 | ||||
| Table | Working area (mm) | 1,800×2,000 | 2,000×2,200 | 2,000×2,500 | |
| Indexing | Indexing at every 0.0001 deg. (opt. cutting feed B axis) |
||||
| Loading capacity (kg) | 20,000 | ||||
| Axis travel | Table, horizontal X-axis (mm) | 3,000 | |||
| Spindle head, vertical Y-axis (mm) |
2,300 | ||||
| Column, in/out Z-axis (mm) | 1,600 | ||||
| Boring spindle, in/out W-axis (mm) | 800 | ||||
| Spindle head | Spindle speed（min-1） | 5～2,500 | |||
| Spindle motor output (continuous/30 min) （kW） | VAC 30/37 | ||||
| ATC tool storage capacity (pcs) | 50（opt. 80、100） | ||||
| Machine weight（kg） | 45,000 | 45,500 | 46,000 | ||
