Machine Tools｜Large Machines｜Double column type Milling Machines
Double column type Milling Machines MVR-Ax series
The companies handling the product：Nidec Machine Tool Corporation
- Contact information for product inquiry
- Contact Us
Reliable basic machine performance contributes to customers' benefit.
MVR-Ax
MVR25Ax
- Throat clearance between columns
- 2,050
- Distance from spindle end to table surface
- std. 1,650
opt. 2,010
MVR30Ax
- Throat clearance between columns
- 2,550
- Distance from spindle end to table surface
- std. 1,650
opt. 2,010
MVR35Ax
- Throat clearance between columns
- 3,250
- Distance from spindle end to table surface
- std. 1,850
opt. 2,150
MVR40Ax
- Throat clearance between columns
- 3,750
- Distance from spindle end to table surface
- std. 1,850
opt. 2,150
MVR45Ax
- Throat clearance between columns
- 4,250
- Distance from spindle end to table surface
- std. 2,150
Features
High Productivity
Non-cutting time is reduced with each axis at high speed rapid traverse.
| Item / Model (Table longitudinal dimension) |
MVR25Ax (3-5m) |
MVR30Ax (3-5m) |
MVR35Ax (4-5m) |
MVR40Ax (4-5m) |
MVR45Ax (6m) |
|---|---|---|---|---|---|
| Rapid traverse XZ axis (mm / min) | 30,000 | 22,000 | 20,000 | ||
| rapid traverse speed Y-axis (mm / min) | 32,000 | 28,000 | 22,000 | ||
| rapid traverse speed Z axis (mm / min) | 20,000 | ||||
| rapid traverse speed W axis (mm / min) | 5,000 | ||||
| Auto tool change time (Sec.) | 5 (Tool to Tool) | ||||
| Auto attachment indexing time (Sec.) | 10 | ||||
The cutting performance
- Powerful five-face machining with the high- performance spindle and attachment
- Gear drive spindle is among the options and it is suitable for heavy duty machining.

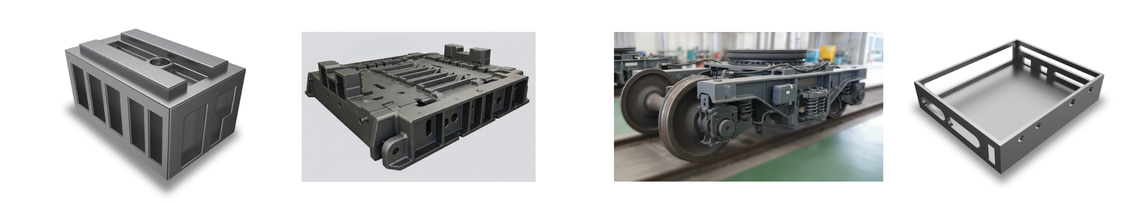

- A variety of attachments is available and can handle many kinds of work pieces.
User friendly
- Nidec Navi can support operators in each process like programing and centering.
- Simple collision prevention function can avoid accidents during debugging.
Specifications
| Item / Model | MVR25Ax | MVR30Ax | MVR35Ax | MVR40Ax | MVR45Ax | ||
|---|---|---|---|---|---|---|---|
| Table | Working area | Width（mm） | 1,500 | 2,000 | 2,500 | 3,000 | 3,500 |
| Length（mm） | 3,000 (opt. 4,000, 5,000, 6,000, 8,000) |
3,000 (opt. 4,000, 5,000, 6,000, 8,000, 10,000) |
4,000 (opt. 5,000, 6,000, 8,000, 10,000) |
6,000 (opt. 8,000, 10,000) |
|||
| Throat clearance between columns（mm） | 2,050 | 2,550 | 3,250 | 3,750 | 4,250 | ||
| Distance from the end to table surface（mm） | 1,650 (opt. 2,010) |
1,850 (opt. 2,150) |
2,150 | ||||
| Spindle | Ram size（mm） | □350 | |||||
| Spindle speed | std.（min-1） | 20～6,000（22/30kW:Cont. Low/High） | |||||
| opt.（min-1） | 20～10,000（22/30kW 26/37kW:Cont. /30 min） | ||||||
| 11～4,000（22/30kW:Cont. /30 min） | |||||||
| Spindle motor output（kW） | Cont. 22/30kW：Low/High（opt. Cont. 22/30kW：Low/High, 22/30kW：Cont./30min） | ||||||
| Number of tools | 60（opt. 80, 100, 120, 180） | ||||||
