MX-1 HOB
The resistance for the wear and the chipping get elevated to the next level.
Characteristics

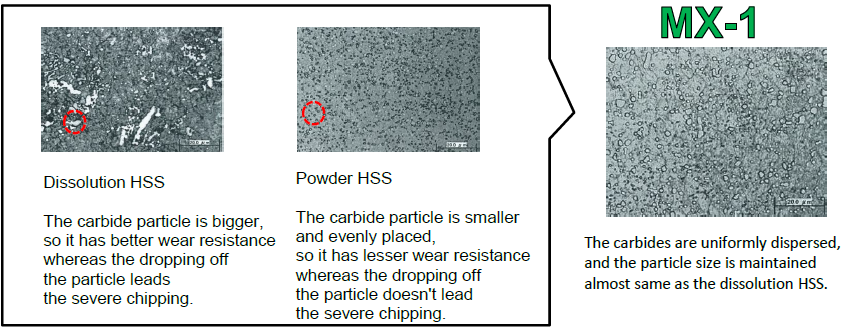

It combines the toughness of Powder HSS and the wear resistance of Dissolution HSS.
![](/-/media/www-nidec-com/machine-tool/knowledge/column/cutting-tool/tool-01/en_mx-1-01.png)

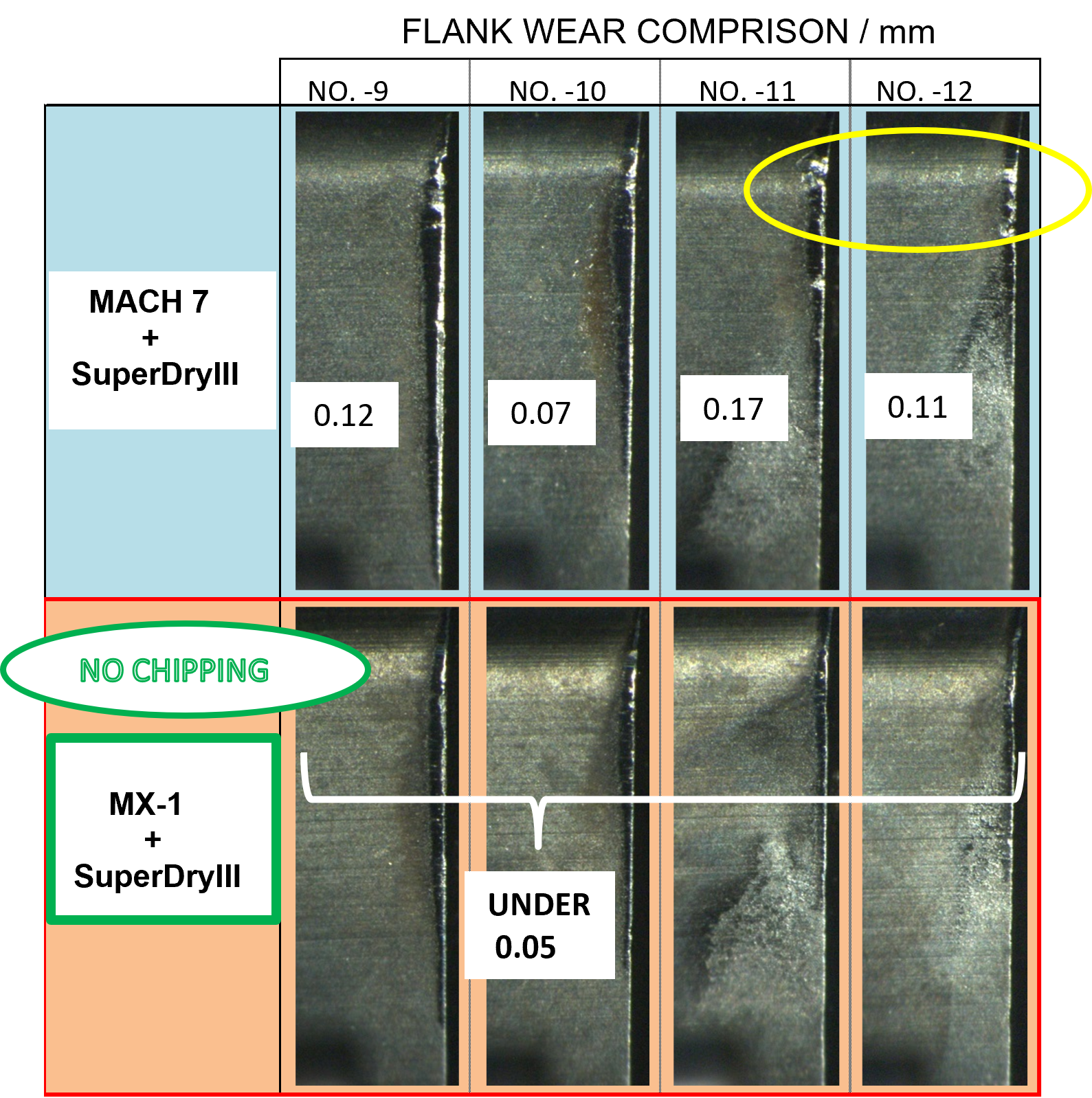

Cutting result
【Workpiece Dimensions】
- Module 2.25
- PA 17.5°
- NT 46
- HA 23°
- Material SCM415
【Hob Dimensions】
- 3 starts 16 flutes
- MACH7 (HSS) / NEW MATERIAL MX-1
- SuperDryIII PVD
(Coat on the cutting face and flank)
【Cutting Conditions】
- Dry cut
- Cutting speed 250m/min
- Axial feed 2.4mm/rev
- Climb cut
- Cutting length 80m (No shift)
![](/-/media/www-nidec-com/machine-tool/knowledge/column/cutting-tool/tool-01/en_mx-1-02.png)
