3D-AM-machines
Large-scale prototype aerospace components
Our technical lab created a large-scale prototype inspired by aerospace components. The distinctive feature of this sample is its size— a whopping diameter of 500mm and a height of 250mm. It boasts an incredibly thin structure, with a thickness of just 1mm, and features a complex design with cooling channels strategically placed. The continuous layering of the thin ―sections and the stacking at the intersections of the cooling channels add to the manufacturing complexity of this component.
Rocket Nozzle Cone 50% Size
- Bottom Φ300 → Top Φ500mm
- Height 250mm
- Base Material: SUS304
- Material: Inconel718

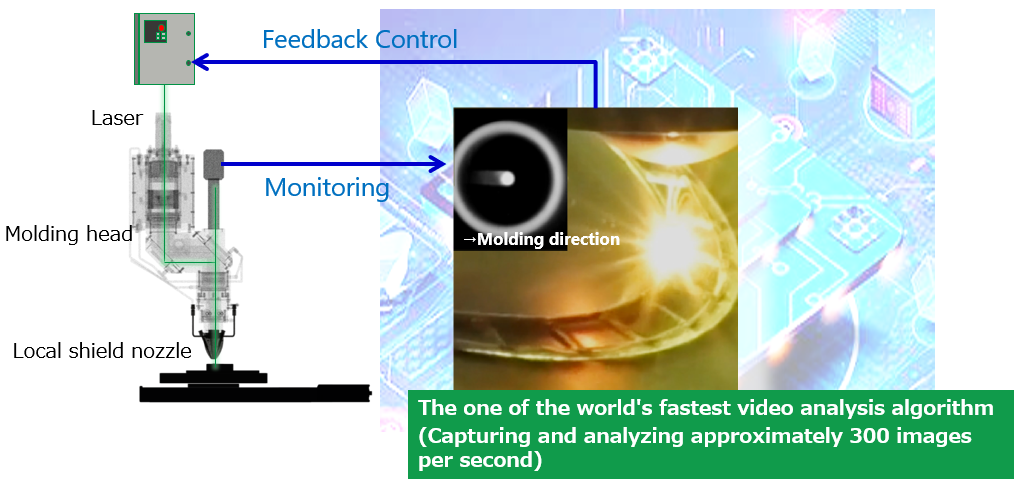

▼Unique monitoring feedback function
By monitoring the melt pool during the fabrication process, we enable to optimally control the laser power, preventing over-melting in the thin sections. This breakthrough ensures prolonged and stable fabrication.
Trial services for 3D metal additive manufacturing
We offer charged trial services for metal 3D metal additive manufacturing.
If your company has one of following requests, please contact us.
